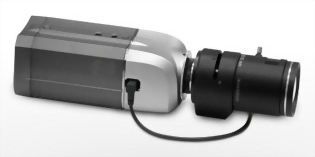

3Megapixel/H.264/1080P Real-Time/D-WDR/Auto-IRIS
Model :
AAL-1031
|
Camera
|
|
|
Sensor
|
3 Megapixel 1/4” CMOS sensor
|
|
Scan Method
|
Progressive
|
|
Lens
|
C-Mount/CS-Mount
|
|
Number of Effective Pixel (H*V)
|
2048x1536
|
|
Minimum Illumination
|
0.1Lux (F1.6, AGC max.)
|
|
Horizontal Resolution
|
1400TVL
|
|
Wide Dynamic Range
|
High/Middle/Low, 3 steps selection
|
|
Dynamic Range
|
69db@8xGain
|
|
SNR(max)
|
37db
|
|
DNR
|
High/Middle/Low, 3 steps selection
|
|
White Balance
|
Auto
|
|
Gain Control
|
High/Middle/Low, 3 step selection
|
|
Flicker Control
|
Off/50Hz/60Hz, 3 steps selection
|
|
Electronic Shutter
|
Auto/Manual (1/30, 1/100, 1/500, 1/1000, 1/2000, 1/5000, 1/10000)
|
|
Number of the Preset Positions
|
16
|
|
IRIS Control
|
DC- IRIS
|
|
Day and Night
|
IR-Cut Filter Removable (ICR)
|
|
Video
|
|
|
Video Compression
|
H.264 (MPEG-4Part 10/AVC)/MJPEG,Dual codec
|
|
Video Framerate
|
2048x1536@22fps/1920x1080@30fps
|
|
Resolution
|
H.264 : 3M(2048x1536@22fps), 2M(1600x1200@22fps), 1080P(1920x1080@30fps) 720P(1280x720@30fps)
MJPEG : 1.3M(1280x960@15fps), 1080P(1920x1080@15fps) 720P(1280x720@15fps) |
|
Bitrate control
|
CBR and VBR, 128kbps ~ 8Mbps
|
|
Multi-streams
|
Dual streaming,Multiple profiles
1920x1080 H.264@30fps/720x400 H.264(Sub)@30fps/1920x1080 MJPEG@15fps 2048x1536 H.264@22fps/640x480 H.264(Sub)@22fps/1280x960 MJPEG@15fps |
|
Digital Zoom (PC side)
|
1/4X, 1/3X, 1/2X, 1X, 2X, 4X
|
|
Image Rotation
|
Mirror, Flip, Rotate 180˚
|
|
Audio
|
|
|
2 Way Audio
|
Audio microphone in, Audio Line-out
|
|
Compression
|
AMR, G7.11@64kbps, G.726@32kbps/Configure bit rate
|
|
Intelligent Video
|
|
|
De-Noise
|
Yes
|
|
Motion Detection
|
Yes
|
|
Blind Detection
|
Yes
|
|
Privacy Mask
|
Yes
|
|
Network
|
|
|
Streaming Protocols
|
RTSP/RTP/UDP,RTSP/RTP/TCP,RTSP/RTP/ HTTP tunneling, LAN Multicast, Multipart-JPEG
|
|
Supported Protocols
|
IPv4, IPv6, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP,ONVIF
|
|
3GPP Mobile Surveillance
|
Yes
|
|
Storage
|
|
|
External
|
1x Micro SD Card(SDHC uo to 32GB)
|
|
Processors and Memory
|
|
|
CPU
|
ARM9 SOC 800Hz
|
|
Flash and Memory
|
16MB NOR flash,256MB DDRIII
|
|
I/O and Connectors
|
|
|
LAN
|
1xRJ-45 Ethernet connector
|
|
Audio
|
1xAudio Microphone-in, 1xAudio Line-out
|
|
Alarm I/O
|
1xAlarm-in (2pin), 1xAlarm-out (3pin)
|
|
Software Compatibility
|
|
|
Browser
|
Intermet Explorer 6.0 or above
|
|
Application software
|
VMS Application software
|
|
OS Supported
|
Microsoft Windows 2000,XP,Vista,Windows 7
|
|
Open API
|
|
|
|
CGI commands to control camera
Media SDK to handle streaming |
|
Factory Default
|
|
|
|
Botton
|
|
Power
|
|
|
Power Input
|
DC12V
DC12V/POE |
|
Power Consumption
|
4.8W
|
|
Dimensions
|
|
|
|
162.5mm(L)x65mm(W)x59mm(D)
|
|
Weight
|
|
|
|
DC12V:390g/POE:415g
|
|
Operation Environment
|
|
|
Operation temperature
|
-10˚C~50˚C
|
|
Storage temperature
|
-20˚C~60˚C
|
|
Storage humidity
|
0%~95% Non-condensing
|
|
Certifications
|
|
|
|
CE, FCC, Class A, RoHS
|
|
Warranty
|
24months
|
Features
- 3 Megapixel 1/4” CMOS Sensor in High Resolution
- H.264/MJPEG Dual Codec & Streaming simultaneously
- 2048x1536@22fps /1080P (1920x1080@30fps)
- Auto-IRIS
- Digital WDR
- Mechanical ICR
- Digital I/O for External Sensor and Alarm
- 3D Noise Reduction
- 2 Way Audio Supported
- Intelligent Video Analytics
- PoE Power Over Ethernet IEEE802.3af (Option)
- Micro SD Card Supported (SDHC up to 32GB)
