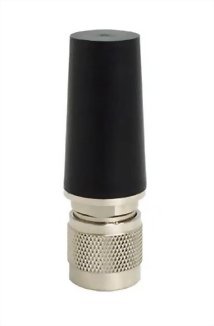

4G/LTE Outdoor Omni Antenna
Model :
AGP-072702NM

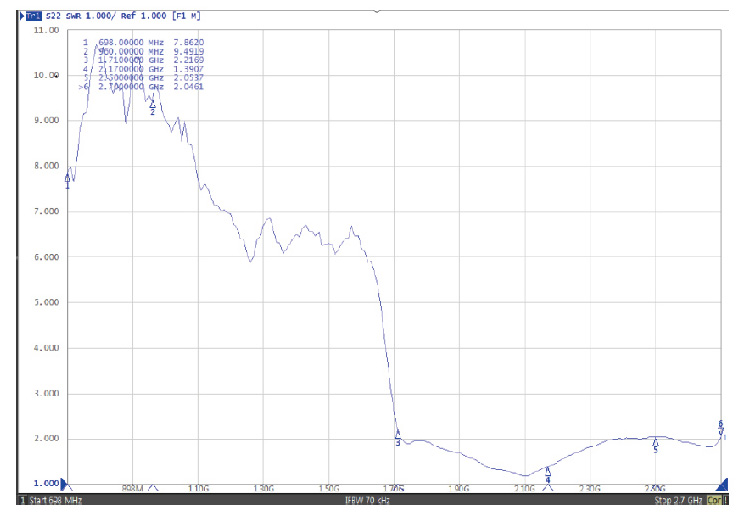

VSWR

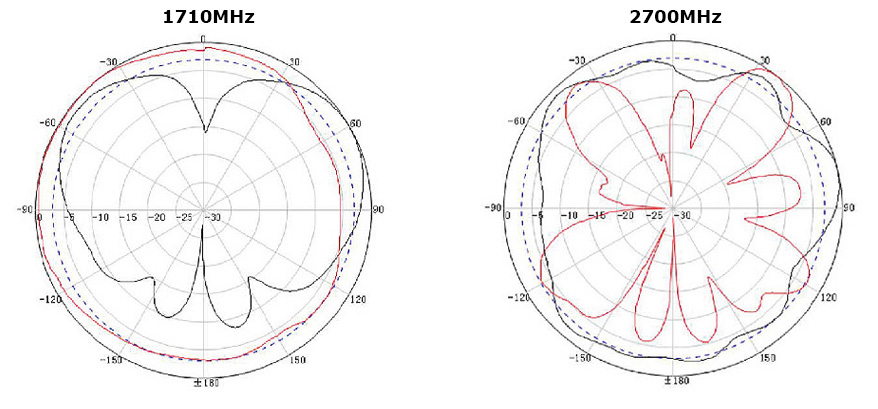

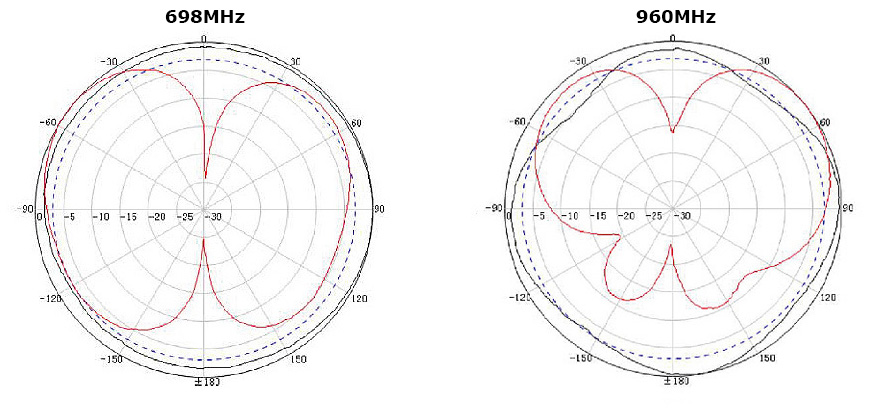

Radiation Pattern

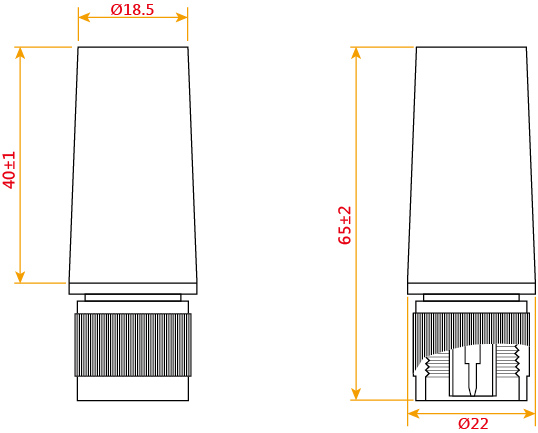

2D Drawing Dimension
| Frequency Range |
698 - 960 MHz 1710 - 2170 MHz 2500 - 2700 MHz |
| Gain | 2 dBi |
| VSWR | ≤ 2.5 |
| Radiation | Omni Direction |
| Impedance | 50 Ω |
| Connector | N male |
| Dimensions | ⌀22x64 mm |
| Weight | 43 g |
| Temperature | -40 °C to 85 °C |
| Humidity |
95% @ 25 °C |
