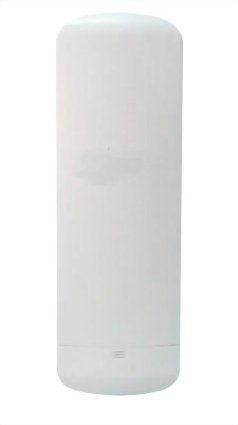

802.11b/g/n outdoor AP
|
Order Information |
APG-2402-P10 |
APG-2402-SM |
APG-2402-NF |
|
|
Passive 24V PoE |
● |
● |
● |
|
|
PoE Pass through |
● |
● |
● |
|
|
Built-in MIMO Antenna |
● |
|||
|
N female connector x2 |
● |
|||
|
RP-SMA female connector x2 |
● |
|
||
|
Chipset |
QCA9531 |
|
Standard |
IEEE 802.11 n/g/b |
|
Frequency |
2.4 GHz |
|
Flash/SDRAM |
16 MB/ 128 MB |
|
Ethernet Speed |
10/100 Mbps |
|
Interface |
2x LAN |
|
Channel Width |
5 / 10/ 20 / 40 MHz |
|
Data Rate |
up to 300 Mbps |
|
Power Requirement |
12V - 24V Passive PoE adapter |
|
Operating Temperature |
-30°C~ 60°C |
|
Storage Humidity |
10 % ~ 90 % (Non-condensing) |
|
Dimension(mm) |
300 x 80 x 30 mm |
|
Weight |
0.4 kg |
RF Specifications [ Tolerance ± 2dB ]
|
Data Rate |
TX |
RX |
|
MCS15 |
23 |
-73 |
|
MCS14 |
24 |
-77 |
|
MCS13 |
26 |
-78 |
|
MCS12 |
28 |
-83 |
|
MCS11 |
29 |
-86 |
|
MCS10 |
29 |
-89 |
|
MCS9 |
29 |
-92 |
|
MCS8 |
29 |
-94 |
|
MCS7 |
23 |
-73 |
|
MCS6 |
24 |
-76 |
|
MCS5 |
26 |
-82 |
|
MCS4 |
28 |
-85 |
|
MCS3 |
29 |
-89 |
|
MCS2 |
29 |
-91 |
|
MCS1 |
29 |
-94 |
|
MCS0 |
29 |
-95 |
|
11g 54M |
25 |
-74 |
|
11b 1M |
29 |
-96 |
• High Speed Data Rates
• 802.11n 300 Mbps
• Open Source Compatible
• OpenWrt supported
• Hardware watchdog
• Ensure operating properly
• PoE Pass through software control-able
• Software control PoE pass through to ensure not to damage other device by mistake

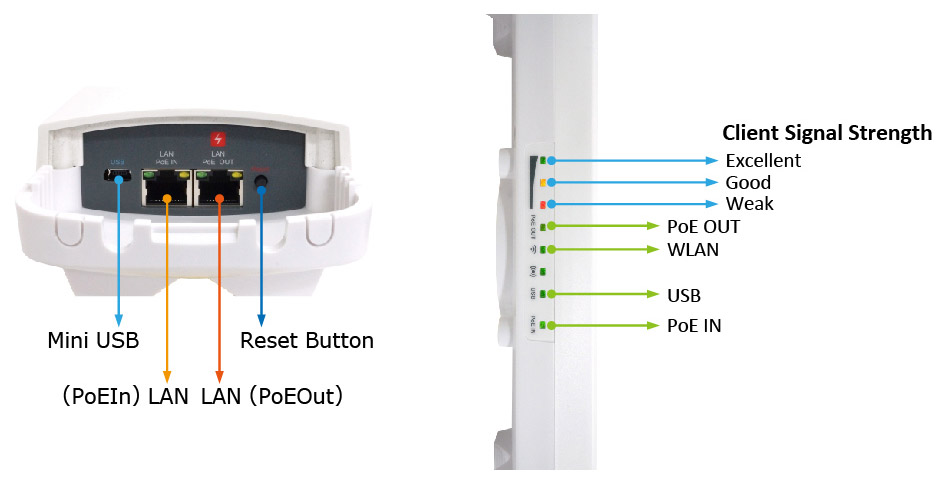

• Built mini USB port
• With mini USB port could enrich function such as to add 4G USB modem, Web Camera, WiFi USB antenna etc.
• Support Channel-Width
• Support channel-width 5/10/20/40 MHz
• Weather-Proof design
• IP rated IP55
• ESD Protection
• Enhanced ESD protection on both LAN and RF
Suitable Applications

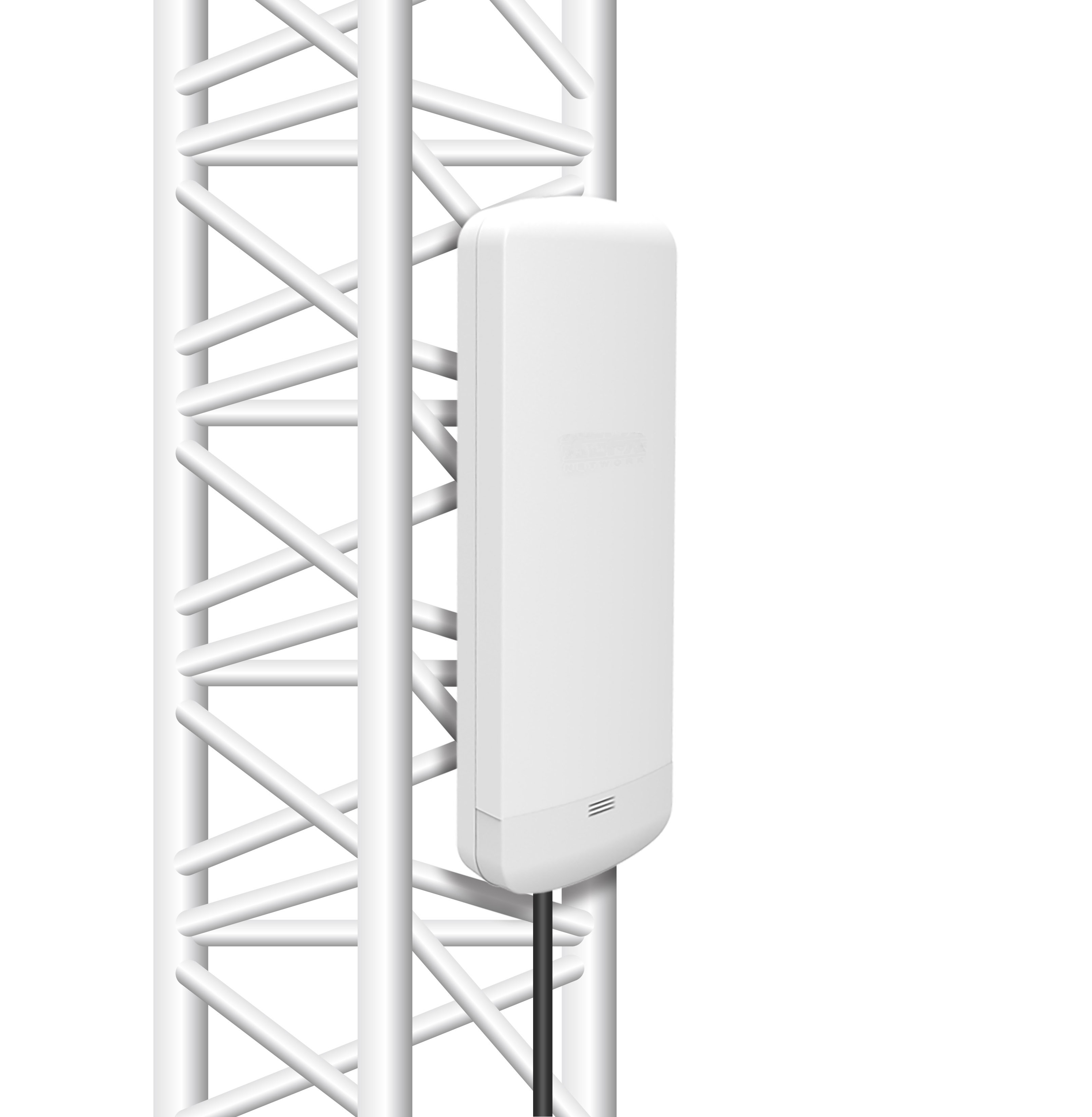

Built-in directional MIMO 10 dBi antenna

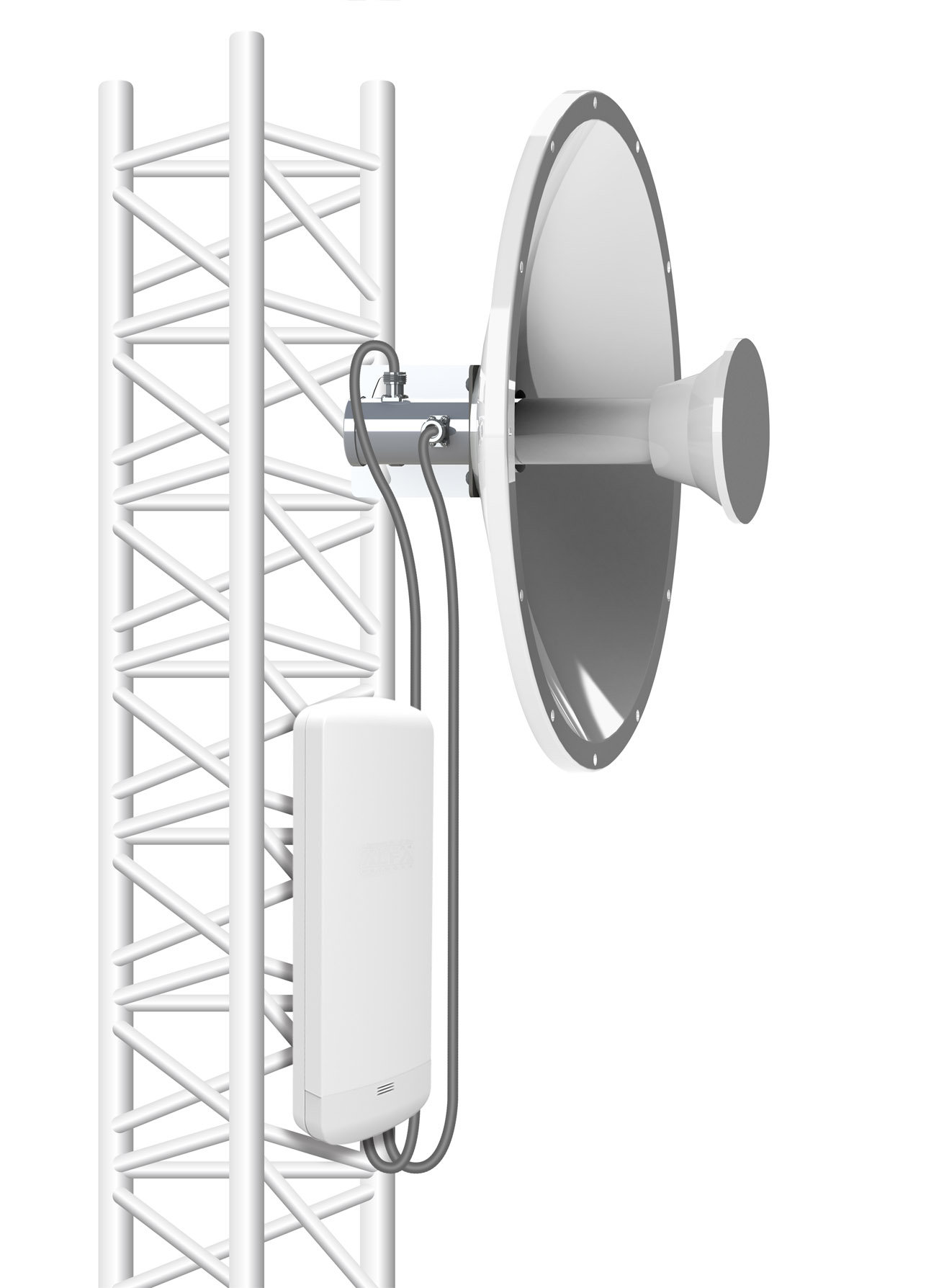

Variety antenna option
External Antenna connector give more choose to meet different application

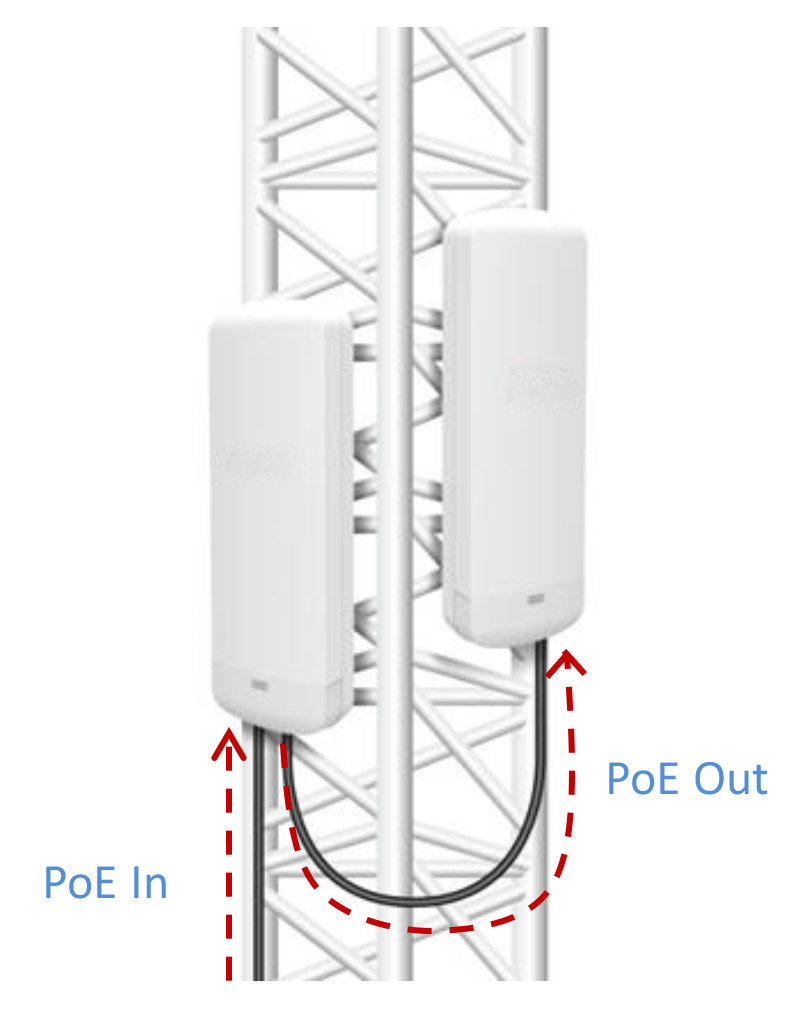

PoE Out to power on another APG-2402-P10
No need extra Ethernet cable to power another APG-2402-P1or Passive PoE 24V device just use another LAN port to give 24VDC and enable pass through from the firmware Make Sure connect device does support input passive PoE 24VDC before enable the pass through from the firmware

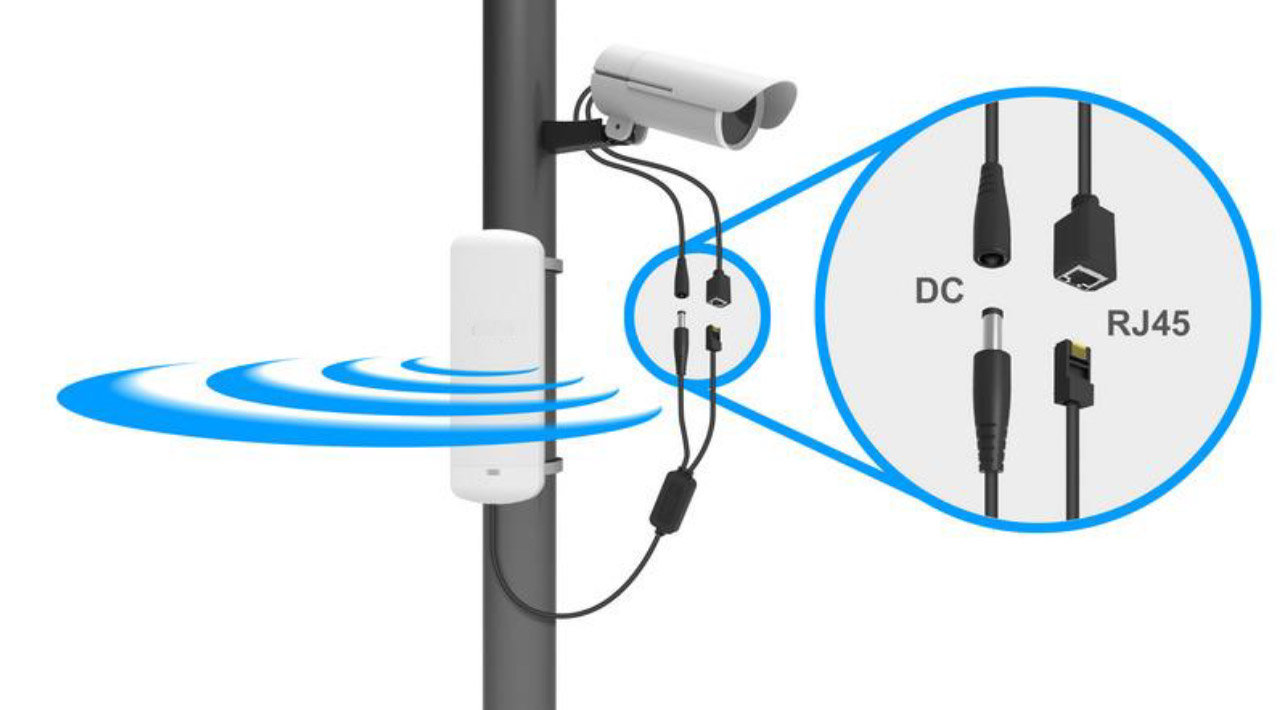

Suggest related Product: DDC-2412
DDC-2412 works with APG-2402-P10 to power on 12VDC Outdoor IP camera model, no need extra power cable
