Global band 5GNR Wi-Fi 6 router

Model : AAP-5G

Q'ty :

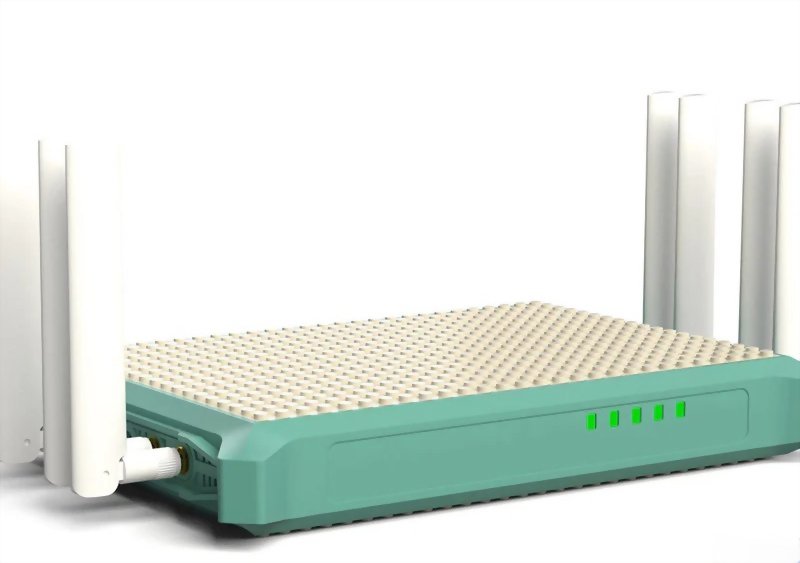

AAP-5G is a Global band 5GNR Wi-Fi 6 router.
It supports the fastest internet speeds and unmatched efficiency. AAP-5G built-in Nano SIM slot and detachable antennas ensure flexible and customized coverage.
With 2.5 Gbps PoE LAN and 1 Gbps WAN ports, it’s designed for the ultimate highspeed, reliable internet experience.
Enhanced with 5G and fixed line failover functionality, it guarantees uninterrupted connectivity, automatically switching to maintain your online activities without a hitch. AAP-5G is for those who demand reliability and speed in every online interaction.

Hardware General

Chipset	MT6890 SoC: Arm Cortex-A55 2 GHz quad-core + 5G NR Wi-Fi 6: MT7915 + MT7975
Flash	32 Gb eMMC
RAM	8 Gb DDR4
Antenna Connector	4x SMA for 5GNR 4x RP-SMA for Wi-Fi 6
Antenna Gain	5G NR: 617 – 960 MHz: 2 dBi 1427 – 2690 MHz: 5 dBi 3300 – 5850 MHz: 4 dBi WiFi: 2.4 GHz: 4 dBi 5 GHz: 4 dBi
Interface	1x Nano SIM slot 1x 2.5 Gbps RJ45 PoE In (Blue) 1x 1 Gbps RJ45 (Black) 1x DC jack (Ø2.1 x Ø5.5) 1x Power on/off switch 1x WPS button 1x Reset button
LED	2x RGBW LED 3x Blue LED
Input Voltage	DC: 12V, 2A PoE: IEEE 802.3at PD 25.5 W
Power Consumption	Max. 24 W
Dimensions	262 x 190 x 42 mm (10.3 x 7.5 x 1.7 inch)
Operating Temperature	-20° C ~ 60° C ( -4° F ~ 140° F )
Operating Humidity	10% ~ 90% (non-Condensing)
ESD	Refers to IEC 61000-4-2 criterion A Air Electrostatic Discharge: ± 8KV Contact Electrostatic Discharge: ± 4KV
Surge	Refers to IEC 61000-4-5 criterion A Common mode surge immunity: ± 6KV Differential mode surge immunity: ± 6KV

5G/4G Standard

5G NR	Supports most main features in 3GPP Release 15 3GPP EN-DC option 3/3A/3X 3GPP SA option 2 Support downlink/uplink 256 QAM Support downlink 4x4 MIMO and uplink 2x2 MIMO
5G NR Bands	N1/n2/n3/n5/n7/n8/n20/n28/n30/n38/n40/ n41/n66/n71/ n77/n78/n79
LTE-FDD Bands	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66
LTE-TDD Bands	B34/B38/B39/B40/B41/B42/B46/B48
WCDMA	B1/B2/B4/B5/B6/B11
GNSS	GPS/Glonass/Beidou/Galileo
Data Rate	Peak download speed: 4.09 Gbps Peak upload speed: 978 Mbps

Wi-Fi Standard

Standard	IEEE 802.11 a/b/g/n/ac/ax (W-Fi 6)
Frequency	2401 - 2483 MHz 5150 - 5835 MHz
Data Rate	2.4 GHz: 574 Mbps 5 GHz: 1201 Mbps
TX Power	2.4 GHz: 21 dBm 5GHz: 21 dBm
RX Sensitivity	2.4 GHz: -96 dBm 5 GHz: -80 dBm
Security	WEP, WPA, WPA2, WPA3
Advanced Feature	MU-MIMO, Beamforming, OFDMA
