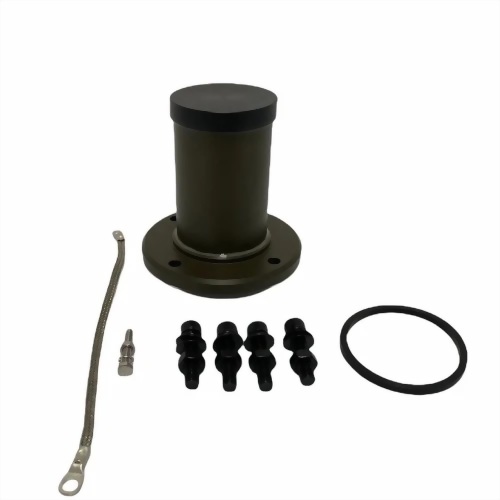

Jammer Antenna For Vehicles (Vehicular Antenna)
Electrical Specifications
Frequency Range
300MHz - 6000MHz
V.S.W. R
>2.5
Color
Black/Green
Radiation
Directional
Gain
3 dBi
Polarization
Vertical
Maximum Power
200W
Vertical Beamwidth
41 deg
Horizontal Beamwidth
270 deg
Impedance
50 Ohm
Connector
N-Female
Mechanical Specifications
Dimension
150x140x140mm
Antenna Weight (N.W)
kg
Application
Indoor/ Outdoor
Storage Temperature
-40 to +80
Operating Temperature
-40 to +60
Operating Humidity
10%~90% non-condensing
Storage Humidity
5%~90% non-condensing
Safety, Emission and other
RoHS, FCC, CE
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL: 810G
- Provides an ultra-efficient, multi-band jamming
- system designed specifically for installation
- within any suitable vehicle.
- Vehicle-installed
- For military purpose
- 500MHz to 6GHz 3dbi Jamming Antenna For Vehicles
- Vehicle-mounted antenna
- Jamming signal
