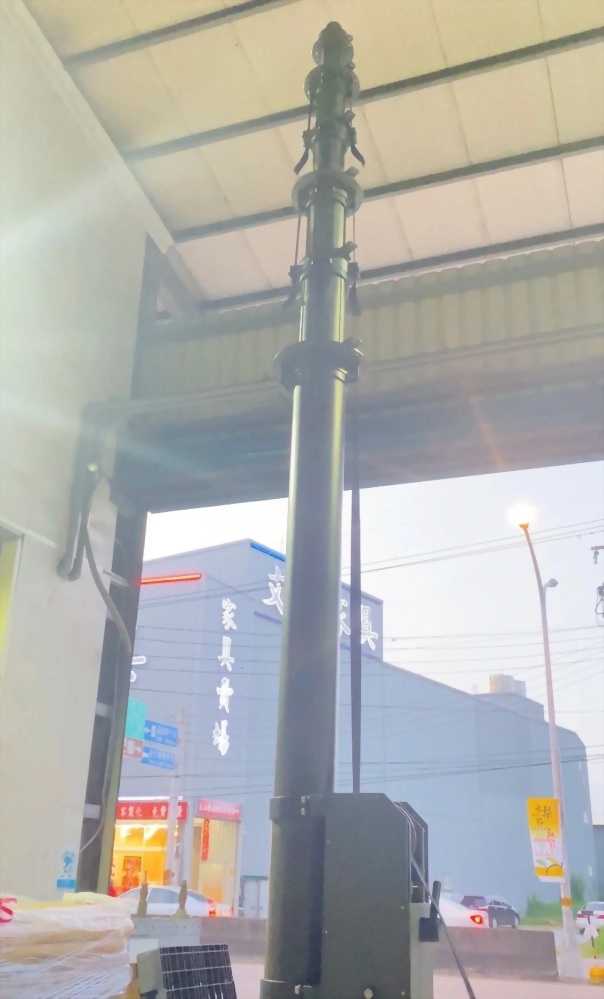

Military Antenna Mast

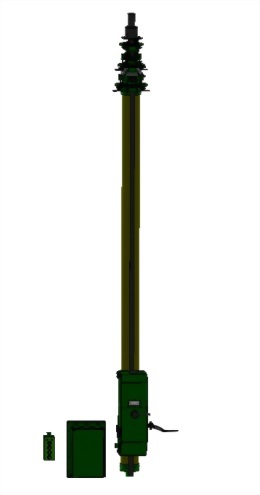

Antenna mast with gearbox
Model :
AM-D120-HA135-RA
|
System Length (M) |
12 |
|
Mast Length (M) |
11.94 |
|
Retracted Length (M) |
2.9 |
|
Bottom Section Diameter (mm) |
128 |
|
Top Section Diameter (mm) |
71.5 |
|
Extension Tube Length (mm) |
500 |
|
Maximum Vertical Top Load (KG) |
74 |
|
Maximum Wind Area |
0.8 |
|
Maximum Horizontal Top Load (N) |
570 |
|
Maximum Operational Wind Speed (mph/km/h) |
120 |
|
Maximum Survival Wind Speed (mph/km/h) |
160 |
|
Guy Radius (M) |
8-10 |
|
Number of Guys x Levels |
4 |
- Made of composite fiberglass by using model technology process enables a high degree of radial hardness.
- Will automatically or manually switch the handle. Rotate 180 degrees to manual counterclockwise
- Height: 8-15M
- This product is suitable for using in all conditions, especially in the hardest environmental conditions
- Offer smart solutions for everything from mobile, communications to broadcast, cellular, and specific custom applications.
- Designing and producing in Taiwan
