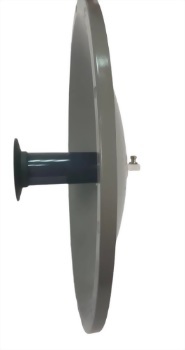

Military Dish Antenna
Electrical Specifications
Frequency Range
10GHz to 10.2GHz
V.S.W. R
<2:1
Antenna Type
Parabolic
Radiation
Directional
Gain (AVG)
33 dBi
Polarization
Vertical or Horizontal
Maximum Power
200 Watts
Vertical Beamwidth
Deg
Horizontal Beamwidth
Deg
Impedance
50 Ohm
Antenna Design
Dish
Connector
N-Female
Mechanical Specifications
|
Dimension (WxLxH) |
65x65x30cm |
|
Antenna Weight (N.W) |
1.6Kg |
|
Antenna Accessories |
1.6Kg |
|
Application |
Indoor/ Outdoor |
|
Material |
Aluminum |
|
Radome |
Glassfiber |
|
Antenna Mounting |
Stainless steel U-Bolts |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-10 to +60 |
|
Operating Humidity |
10%~70% non-condensing |
|
Storage Humidity |
5%~50% non-condensing |
|
Safety, Emission and other |
RoHS |

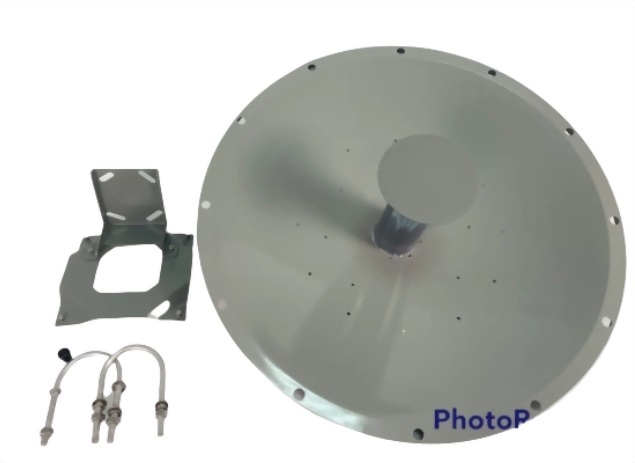

- Includes tilt and swivel mast mount kit
- Superior Performance
- Good appearance design
- Support is up and down or so to adjust
- Suitable for military using purpose
- Dish antenna 10GHz to 10.2GHz Frequency band
- High gain antenna for point to point
- receive television broadcasts or other electronic communication signals.
- Wifi
