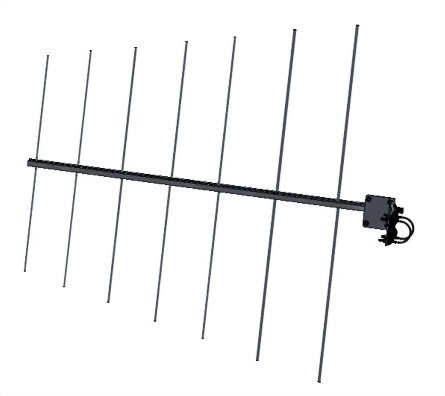

Military Log periodic antenna
Electrical Specifications
Frequency Range
300 – 470 MHz
V.S.W.R
2:1
Antenna Type
Log Periodic antenna
Radiation
Directional
Gain
11 dbi
Polarization
Vertical or Horizontal
Maximum Power
500W
-3db Horz. Beamwidth (AVG)
65deg
-3db Vert. Beamwidth (AVG)
55deg
Impedance
50 Ohm
Connector
N-Female
Mechanical Specifications
Dimension (WxL)
917x950mm
Weight
2kg
Accessories
Mounting bracket
Mount Style
1.5’’ Pole Mounting Type: L1
Parts Material
Aluminum
Application
Indoor/ Outdoor
Operating Temperature
(-)30 to +70°C
Operating Humidity
(-)30 to +70°C
Humidity
0 to 95% RH
Safety, Emission and other
CE, FCC, RoHS
- Superior Performance
- Good appearance design
- MIL Standards
- High power
- RoHS Compliant
- 300 to 470MHz UHF Band log periodic antenna, 11dbi
- Provide wideband directional transmission/reception of radio signals from 300-470 MHz bands for STL sites for ground-to-ground without having the requirement of multiple antennas
