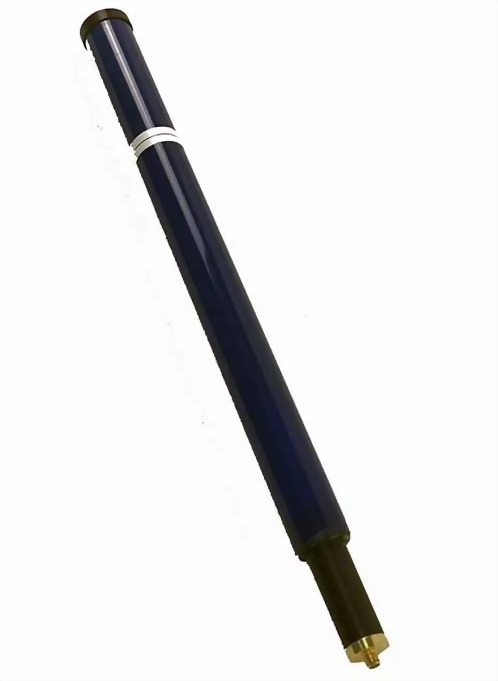

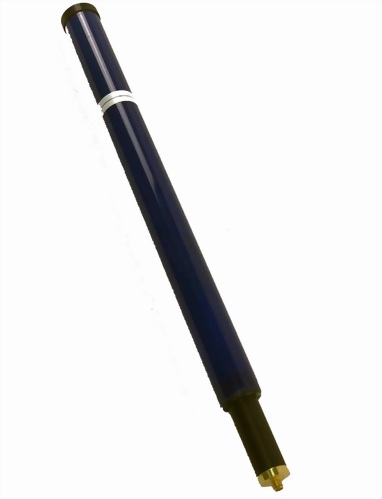

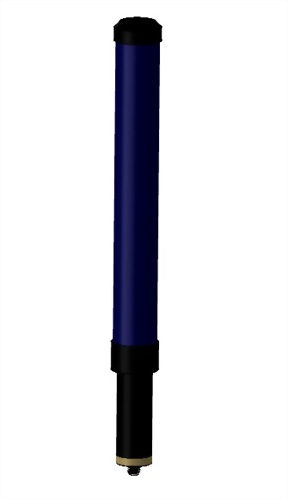

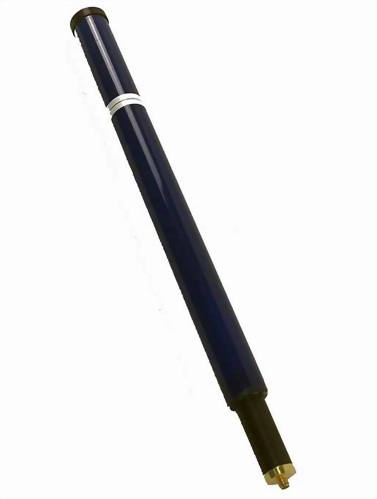

Precision Sleeve Dipole Antenna
Electrical Specifications
Frequency Range
1400MHz to 1700MHz
V.S.W.R (MAX)
3.0 :1
1500MHz to 1600MHz 1.5:1
Antenna Type
Collinear
Gain
2.15dBi (+- 1dBi)
1400 to 1640MHz Round Differences less Than
0.1db
1650 to 1700MHz Round Differences less than
0.13db
Polarization
Vertical
Maximum Power
150 Watts
Vertical Beam-width
68 Deg
Horizontal Beam-width
360 Deg
Impedance
50 Ohm
Antenna Design
1/4 Wavelength
Sleeve Dipole
Internal Material
Copper
Connector
N-Female
Mechanical
Specifications
Radiation
Length (MAX)
243mm
Diameter (MAX)
Antenna Weight (G.W)
160g
Accessories (G.W)
60g
Radome Material
Fiberglass
Parts Material
PVC
Wind Survival
NO
Storage Temperature
-20 to +80
Safety, Emission and other
CE, FCC, RoHS,CTIA
Application
Mount Style
Mounting
Operating Temperature
Operating Humidity
Storage Humidity
- Superior performance
- Lightweight
- Good appearance design
- Precision Gain for Range Calibration
- Avoid interfering with the antenna's effectiveness by avoiding cable and feed point contacts.
- (CTIA) +/- 0.1 dB symmetry requirement for ripple test measurements
- 1400 MHz to 1700 MHz Precision Sleeve Dipole Antenna, SMA-Female Connector
- Gain reference, low gain antenna efficiency reference, and chamber reflectivity evaluation
