USB Type-C to mini PCIe adapter with dual-SIM and reset features
Model :
PCBA-S2
PCBA-S2 is a Type-C to mini PCIe adapter dedicated for modems
PCBA-S2 offers a quick and easy way to use a regular full-size Mini Card 4G/LTE and 5G module on desktop or notebook PC equipped with USB connectivity.
Dual (mini and micro) SIM feature with sophisticated reset logic circuit, mechanical SIM select switch and modem reset button complement rich functionality of the adapter.
Adapter includes two female SMA connectors for antennas and the bundle contains required jumper RF cables (IPEX/U.FL to IPEX/U.FL).

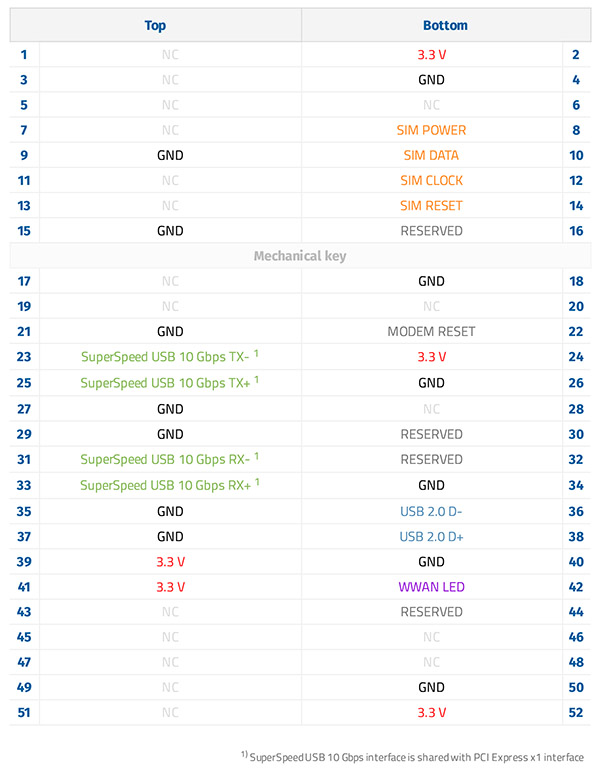

mini PCIe slot pinout
Specifications
| Parameter | Value |
|---|---|
| Adapter interface |
Type-C SuperSpeed USB 10 Gbps (with USB 2.0 backward compatibility) |
| Modem interface |
SuperSpeed USB 10 Gbps (shared with PCIe signal lines) USB 2.0 SIM card |
| Modem form factor | Full-size Mini Card |
| Antenna |
2× external (female SMA connectors) 2× internal |
| SIM |
1× micro SIM 1× mini SIM |
| Button | 1× push-button (modem reset) |
| Switch | 1× slide switch (SIM select) |
| LED |
1× modem status (blue) 1× micro SIM (blue) 1× mini SIM (blue) 1× power (blue) |
| Operating humidity | 10 % ~ 90 % RH, non-condensing |
| Operating temperature | -30 ° ~ 70 ° C |
| Mounting holes | ∅ 3 mm, 79.6 × 28.2 mm |
| PCB dimensions | 84.6 × 33.2 mm |

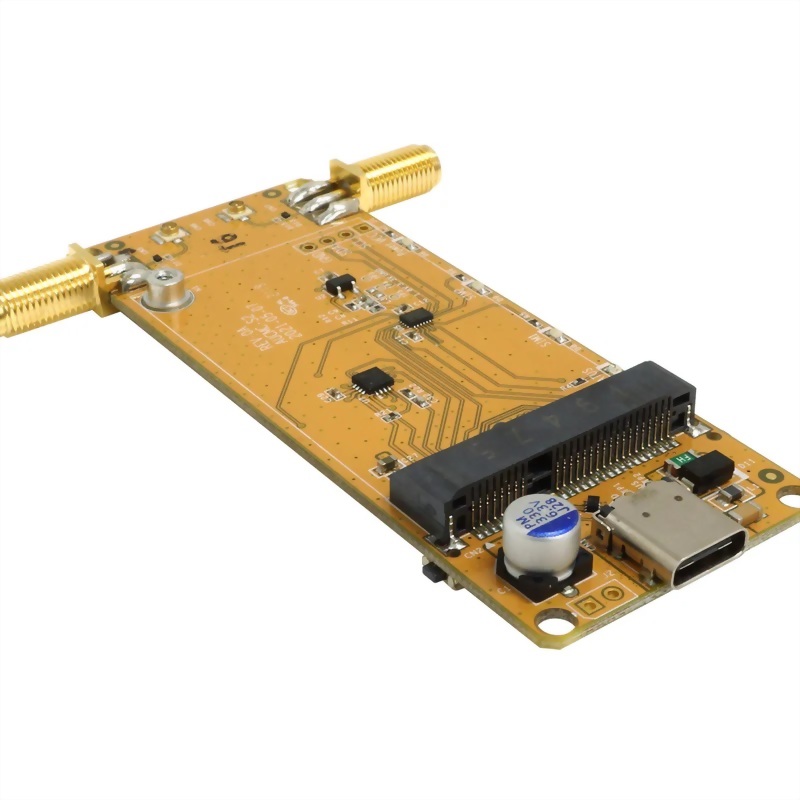

- (1) Type-C SuperSpeed USB 1 10 Gbps receptacle
- (2) Mini PCIe with SIM and USB (SuperSpeed USB 10 Gbps and USB 2.0)
- (3) 4× LED
- (4) 2× IPEX/U.FL to SMA antenna connector
- (5) 1× mini SIM
- (6) 1× micro SIM
- (7) SIM slide switch
- (8) Modem reset button
