5 Mega-Pixel high resolution, 1/2.5" CMOS sensor

Model : AAL-3600

Camera Specification

Image sensor

1/2.5" CMOS, 5.0 Mega-Pixel

Lens

1.05 mm 180-degrees fish eye board lens

Video

Triple Codec H.264, MPEG-4 and MJPEG
Support Simultaneous multiple streams
Support BNC analog output, NTSC & PAL video output switch

Network

interface: 10/100 Mbps Ethernet, RJ45
Protocol: IPv4, TCP/IP, DHCP, HTTP, FTP, SMTP, RTSP, SNTP, DNS
Browser: Microsoft Internet Explorer 6.0 or above

Image Setting

AGC, AWB, AES, BLC

Maintenance

Support online firmware upgrade

Water proof level

IP66 standard

Power supply

Power over Ethernet (PoE) or DC12V, AC24V

Image compression

H.264 / 8fps at 2592x1920
MPEG4 / 8fps at 2592x1920
MJPEG / 8fps at 2592x1920

Dimensions

D:145 x H:108.2 mm

Weight

ca. 892g

Operating temperature

Operating temperature : 0~45 degrees (Celsius)

Key Feature

  • 5 Mega-Pixel high resolution, 1/2.5" CMOS sensor.

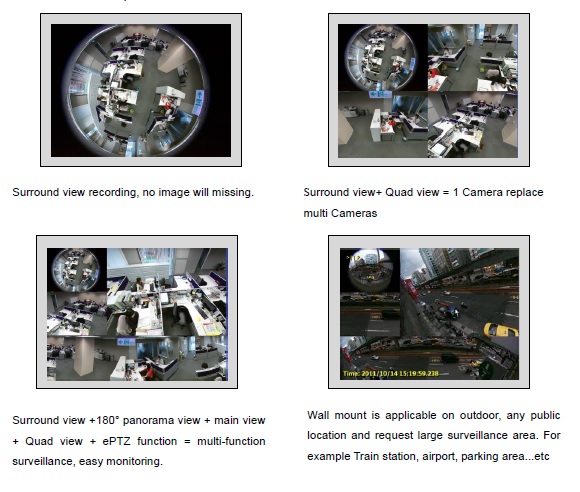

  • Ceiling mount 360-degrees all surround view and wall mount 180-degrees panorama view without blind spots.
  • ePTZ function easily zoom in and focus on target. Surround view recording, no image will missing.
  • Quad view to show images from multiple different areas in one window. All important spots are plainly visible.
  • Horizon self-adjusting, wall mount 180-degrees panorama view direction automatically adjust. Easy installation.
  • Automatically search IP camera by VMS. Easy installation and operation.
  • IP66 water & dust proof.

VMS Feature

  • Play back max speed is 512 times, fast search image data.
  • Storage data display as an image icon and list by time. It is easy and convenient to find image data.
  • Image data could output on AVI format.
  • Remote Monitor could operate all function by Internet Explorer.
  • IP66 water & dust proof.
