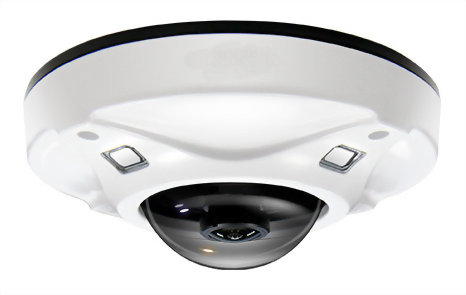

Fisheye Vandal IP Camera

Model : AAL-9017

Camera

Sensor

5 Mega Pixel 1/2.5” CMOS sensor

Scan Method

Progressive

Lens

1.19 mm F2.8

Number of Effective Pixel (H*V)

2592 x1944

Wide Dynamic Range

Digital ( on / off )

Dynamic Range

67.74db@8xGain

SNR(max)

38.5db

DNR

On / Off

White Balance

Auto / Cloudy / Daylight / Manual

Gain Control

High/Middle/Low, 3 step selection

Flicker Control

50 Hz,60 Hz

Electronic Shutter

Auto

Field of View

180°

Panning Coverage

Digital

Tilting Coverage

Digital

Video

Video Compression

H.264 (MPEG-4 Part 10/AVC)/MJPEG, Dual codec

Video Framerate

1920x1080@30fps

Resolution

H.264 :
1080P(1920x1080@30fps)
720P(1280x720@30fps) MJPEG :
1080P(1920x1080@30fps)
720P(1280x720@30fps)

Bitrate Control

CBR and VBR, 128kbps ~ 10Mbps

Multi-streams

Triple streaming,Multiple profiles
1920x1080 H.264@30fps / 1280x720 H.264(Sub)@30fps / 1920x1080 MJPEG@15fps

Digital Zoom

Digital

Image Rotation

Desktop, Ceiling, wall

Intelligent Video





De-Noise / Motion Detection / Blind Detection

Audio

2 Way Audio

Audio Line-in, Audio Line-out

Compression

AMR, G.711 @ 64kbps, G.726 @ 32kbps / Configure bit rate

Network

Streaming Protocols

RTSP / RTP / UDP, RTSP / RTP / TCP, RTSP / RTP / sHTTP tunneling, LAN Multicast, Multipart-JPEG

Supported Protocols

IPv4, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP,ONVIF

Mobile Surveillance

iPhone, iPad, Android, BlackBerry

Storage

External

2 x Micro SD Card ( SDHC up to 32GB )

Processors and Memory

CPU

ARM9 SoC 800MHz

Flash and Memory

32MB NOR flash, 256MB DDRIII

I/O and Connectors

LAN

1 x RJ45 Ethernet connector

Audio

Audio Line-in, Audio Line-out

Factory Default

1 x Reset Button

Alarm I/O

1 x Alarm-in, 1x Alarm-out

Software Compatibility

Browser

Internet Explorer 6.0 or above

Application Software

VMS Application Software

OS supported

Microsoft Windows 2000, XP , Vista, Windows 7

Open API



CGI commands to control camera



Media SDK to handle streaming

Power

Power Input

DC 12V, DC12V/POE (2 pin connect)

Power Consumption

5.6W

Operating Environment

Operating temperature

-20°C~ 50°C

Storage temperature

-30°C~ 60°C

Humidity

0% ~ 95% non-condensing

Factory Default

Button

Demension

145mm(Φ) x 61mm(H)

Weight

700g

Certification

CE, FCC Class A, RoHS, IP68, IK10, EN50155

Warranty

24 months





• 5Megapixel 1/2.5" CMOS Sensor

• H.264/MJPEG Dual Codec & Streaming simultaneously

• 1080P (1920X1080@30fps)

• 1.19 mm Fisheye Lens for 180° Panoramic View and 360° Surround View

• Mechanical ICR

• 2 Way Audio Supported

• Intelligent Video Analytics

• Digital WDR

• IP68 Water+ IK10 Vandal Proof / EN50155

• Support ePTZ control

• PoE Power Over Ethernet IEEE802.3af (Option)

• Micro SD Card Supported (SDHC up to 32GB)
