IR Mini Bullet Network Camera
|
Camera |
|
|
Sensor |
2 Mega Pixel 1/4” CMOS sensor |
|
Scan Method |
Progressive |
|
Lens |
Fixed Lens 3.6mm, F1.8 |
|
Number of Effective Pixel (H*V) |
1600x1200 |
|
Minimum Illumination |
0.1Lux (F1.6, AGC max.)0Lux (IR On) |
|
Horizontal Resolution |
950TVL |
|
Dynamic Range |
71db |
|
SNR(max) |
42db |
|
DNR |
High/Middle/Low, 3 steps selection |
|
White Balance |
Auto |
|
Gain Control |
High/Middle/Low, 3 steps selection |
|
Flicker Control |
Off/50Hz/60Hz, 3 steps selection |
|
Electronic Shutter |
Auto/Slow shutter |
|
IR Illuminators |
|
|
Wavelength Range |
850mm |
|
Distance |
20M |
|
Day and Night |
IR-Cut Filter Removable (ICR) |
|
Beam Angle |
300 /500 mixed |
|
Video |
|
|
Video Compression |
H.264 (MPEG-4Part 10/AVC)/MJPEG, Dual codec |
|
Video framerate |
1600x1200@15fps/1280x720@30fps |
|
Resolution |
H.264 : 2MP(1600×1200@15fps) 720P(1280×720@30fps) MJPEG : 2MP(1600×1200@5fps) 720P(1280×720@30fps) |
|
Bitrate control |
CBR and VBR, 128kbps~4Mbps |
|
Multi-streams |
Dual streaming,Multiple profiles 1280x720 H.264@30fps/640x352 H.264(Sub) @30fps/1280x720 MJPEG@15fps 1600x1200 H.264@15fps/640x480 H.264(Sub) @15fps/1600x1200 MJPEG@5fps |
|
Digital Zoom (PC side) |
1/4X, 1/3X, 1/2X, 1X, 2X, 4X |
|
Image Rotation |
Mirror, Flip, Rotate 180° / 90° |
|
Intelligent Video |
|
|
De-noise |
Yes |
|
Motion detection |
Yes |
|
Blind detection |
Yes |
|
Privacy Mask |
Yes |
|
Panning/Tilting |
|
|
Number of the Preset Positions |
16 |
|
Network |
|
|
Streaming Protocols |
RTSP/RTP/UDP,RTSP/RTP/TCP,RTSP/RTP/HTTP tunneling, LAN Multicast, Multipart-JPEG |
|
Supported Protocols |
IPv4, IPv6, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP, ONVIF |
|
Mobile Surveillance |
iPhone, iPad, Android, BlackBerry |
|
Processors and Memory |
|
|
CPU |
ARM9 SOC |
|
Flash and Memory |
16MB NOR flash,128MB DDRII |
|
I/O and Connectors |
|
|
LAN |
1x RJ45 Ethernet connector |
|
Software Compatibility |
|
|
Browser |
Internet Explorer 6.0 or above |
|
Application Software |
VMS Application Software |
|
OS supported |
Microsoft Windows 2000, XP , Vista, Windows 7 |
|
Open API |
|
|
|
CGI commands to control camera Media SDK to handle streaming |
|
Factory Default |
|
|
|
Button |
|
Power |
|
|
Power |
DC 12V DC12V/ POE (DC Jack) |
|
Power Consumption |
TBD |
|
Demension |
|
|
|
63mm(Φ)x 166mm(L) |
|
Weight |
|
|
|
TBD |
|
Operating Environment |
|
|
Operating temperature |
-20°C~ +50°C |
|
Storage temperature |
-30°C~ +60°C |
|
Humidity |
0% ~ 95% non-condensing |
|
Certification |
|
|
|
CE, FCC Class A, RoHS, IP 66 |
|
Warranty |
|
|
|
24 months |

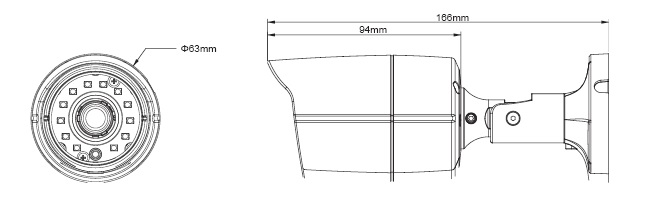

Dimension Diagram
|
•2 Megapixel 1/4” CMOS Sensor in High Resolution
•H.264/MJPEG Dual Codec & Streaming simultaneously
•Fixed Lens 3.6mm F1.8
•UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)
•3D Noise Reduction
•20 meters IR LED
•Intelligent Video Analytics
•IP 66 Water Proof
•DC12V&PoE Power Over Ethernet IEEE802.3af (Option)
