LTE/3G, LTE/2G, GNSS Portable Tracker with Dual- Power, APP & Web Support

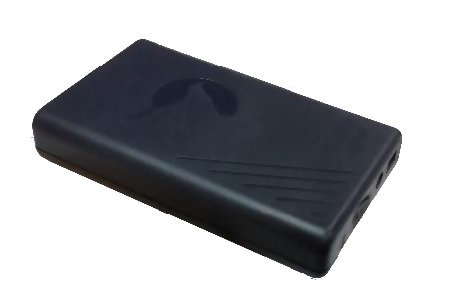

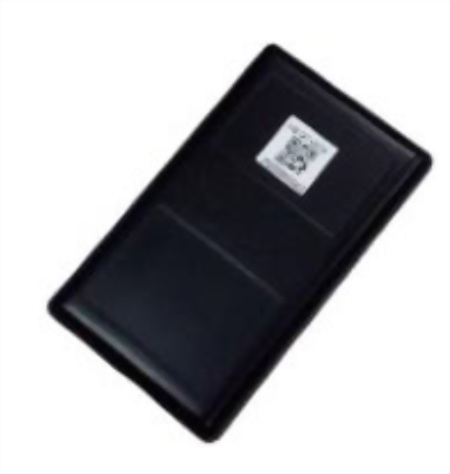

Model : OT-4G-09

OT-4G-09 is designed to be a compact device with all necessary components built-inside, demonstrating ultra- high performance while keeping small dimension.

Thanks to the high efficiency GNSS and  cellular modules/ antennas, OT-4G-09 could be used at almost anywhere in a vehicle, brought by people, or worn by hunting dogs.

Moreover, it’s designed with the latest 4G LTE cellular


technology while still providing 3G or 2G connectivity to ensure complete population and geographic coverage as LTE rolls out.



˙Dimension (mm)

91.5 x 54.3 x 17 (A, E, G, J, U, V)

91.5 x 61 x 34.6 (B, F, H, K, T, W)

˙Internal Battery/ Charging Time Charging Voltage

Rechargeable, Li-ion, 1500mAh / 3 hours 20 minutes (via USB 3.0)

8000mAh/ 13 hours (via 2A adapter)

DC 4.75 ~ 5.25 V

˙External Power

JST RCY connector - SYR-02TDC 3.6 ~ 4.4 V

˙Positioning

GPS/GLONASS/QZSS w/ AGPS

˙Cellular Model A,B, C: Telstra/APAC 4G LTE: Band 3,5,8,28;

3G WCDMA: Band 1,5,8

Model E,F: EMEA, APAC

4G LTE: Band 1,3,8,20,28;

2G GPRS: Band 3,8

Model G,H,I: EMEA, APAC

4G LTE: Band 1,3,8,20,28;

3G WCDMA: Band 1,8

2G GPRS: Band 3,8

Model U,T: AT&T, T-Mobile

4G LTE: Band 2,4,5,12;

3G WCDMA: Band 2,4

Model V,W: Verizon/USA

4G LTE: Band 4,13

Model J,K: Docomo/Japan 4G LTE: Band 1,18,19

˙G-sensor

3-axis, ±2g~±16g

˙PowerConsumption

OFF: 11uA

Hibernate: 160uA

˙(w/ Internal Battery)

Sleep: 300uA Idle: 2.3 ~ 3.5 mA

Regular working: 50 ~ 250 mA

˙Capacity of Data Buffer

(by Flash) 16,384 records – i.e.

273 hours or 11 days if data is continuously sent once per minute

˙Watertight

Suitable  protection  at  bottom  I/O

side allows it to achieve IPX6

˙Weight

88g (A, E, J, U, V)

626g (B, F, K, T, W)

˙Temperature

Working:-20°C ~ 60 °C

Storage:-20°C ~ 35 °C



˙Based on latest LTE plus 3G or 2G coverage

˙Sensitive GPS+GLONASS with AGPS support

˙Dual-power supply

˙Internal 1540mAh Li-ion rechargeable battery

˙Built-in charging/protection circuit

˙Sub-models (A, E, G, J, U, V)

˙Internal 8000mAh Li-polymer rechargeable battery (optional)

Sub-models (B, F, H, K, T, W)

˙External power (optional)

˙From 12V/24V vehicle battery with power adapter cable or

High-capacity battery pack (e.g.17000mAh)




˙Law enforcement agent, detective

˙Vehicle security/anti-theft

˙Fleet Management

˙Personal care

 Elders, children, lone workers,

 People who exposed to potential dangers, such as social workers,

 standalone workers

˙Amusement – worn by hunting dogs
