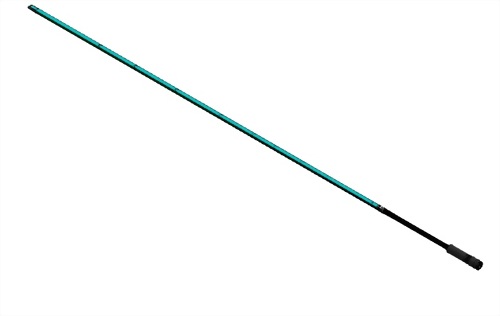

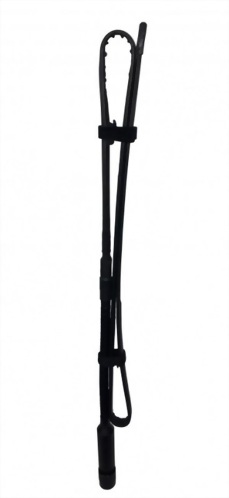

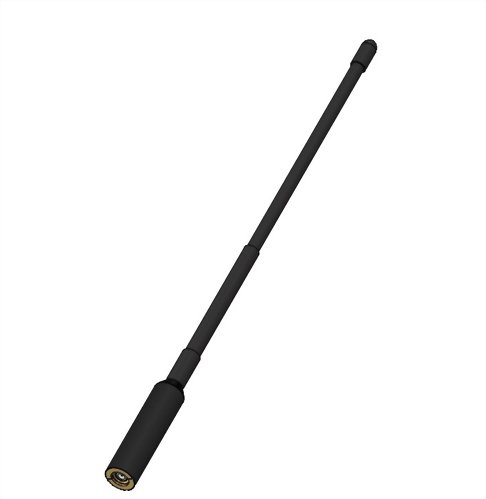

Military Handheld & Manpack Antenna (MH series)
Electrical Specifications
Frequency Range
30 MHz – 520 MHz
Antenna Type
Collinear
Radiation
Omni Directional
Gain
-9 to 1 dbi
Polarization
Vertical
Maximum Power
27 Watts
-3db Beamwidth H-Plane
360 deg
-3db Beamwidth V-Plane
96 deg
FBR (AVG)
2 dB
Impedance
50 Ohm
Connector
N-Male
Mechanical Specifications
|
Length |
1400mm |
|
Antenna Weight |
550g |
|
Application |
Indoor / Outdoor |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +120 |
|
Operating Humidity |
10%~95% non-condensing |
|
Storage Humidity |
5%~95% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS, WEEE |
- Superior performance
- Lightweight
- Good appearance design
- MIL-Standards
- RoHS Compliant
- 30 MHz to 520 MHz Military Handheld & Manpack Whip Antenna, N-Male Connector Type: A
- Manpack radios and portable jamming systems on VHF/UHF frequency range from 30 to 520 MHz.
