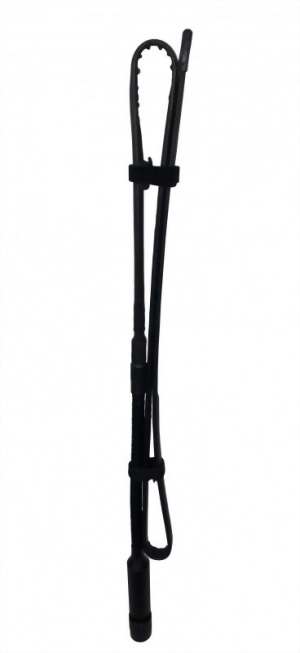

Military Handheld & Manpack Antenna (MH series)
Electrical Specifications
Frequency Range
30-108 MHz
V.S.W.R (AVG)
<3.5
Antenna Type
Monopole
Radiation
Omni Directional
Gain
-10 ~ 0dBi
Polarization
Vertical
Maximum Power
25W
Vertical Beam-width
58 Deg
Horizontal Beam-width
360 Deg
Impedance
50 Ohm
Antenna Design
Monopole antenna
Internal Material
Copper
Connector
BNC-male
Mechanical Specifications
| Length (MAX) | 1600+-50mm |
| Antenna Weight (G.W) | 600g |
| Times of bending (times): | Greater than 1000 |
| Operating Temperature: | -20degC to +60degC |
| Storage Temperature: | -40degC to +80degC |
| Operating Humidity: | 10%~80% non-condensing |
| Storage Humidity: | 5%~80% non-condensing |
| Safety, Emission and other | RoHS |
- Compact design, lightweight
- Superior performance
- Good appearance design
- Compliant with MIL-Stds
- 30-108 MHz Pro Military Wideband Whip Antenna
- Mobile VHF antenna
