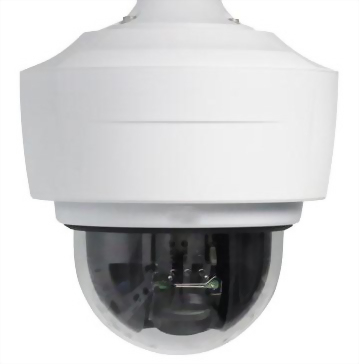

Speed Dome Network Camera
Model :
AAL-5013-22X
|
Camera
|
|
|
Zoom Lens Module
|
Samsung 22X SCM-2230N(P)
|
|
Sensor
|
1/4" Interline Transfer CCD
|
|
Scan Method
|
Interlace
|
|
Lens
|
22X optical zoom lensf=3.5 to 80.9mmF1.6~F2.4
|
|
Zoom Ratio
|
22X in Optical Zoom, 16X in Digital Zoom
|
|
Minimum Illumination
|
C/L : 0.2Lux/F1.6 (50 IRE), B/W : 0.02Lux/F1.6(50 IRE)
|
|
Horizontal Resolution
|
Color : 560TVL, B/W : 680TVL
|
|
Wide Dynamic Range
|
SSDR
|
|
Backlight Compensation
|
Off/BLC/HLC
|
|
Electronic Shutter
|
1/50~1/120000
|
|
DIS
|
Yes
|
|
Number of Effective Pixel(H*V)
|
NTSC (768x494) / PAL (752x582)
|
|
SNR(max.)
|
50db
|
|
DNR
|
High/Middle/Low, 3 steps selection
|
|
White Balance
|
Auto/Indoor/Outdoor/Manual
|
|
Gain Control
|
High/Middle/Low, 3 steps
|
|
Flicker Control
|
Off/50 Hz/60 Hz, 3 steps
|
|
Panning Coverage
|
0˚~360˚
|
|
Tilting Coverage
|
-10°~ 90°
|
|
Panning/Tilt Speed
|
Manual: Panning Speed Approx. 0.2°/s ~ 196.8°/s, Tilt Speed Approx.
0.2°/s ~ 98°/s, preset: up to approx. 450°/s |
|
Number of the Preset Positions
|
64
|
|
IRIS Control
|
Auto/Manual
|
|
Exposure Compensation
|
Auto
|
|
Slow Shutter
|
Auto/Off
|
|
Noise Reduction
|
Yes
|
|
Day and Night
|
R-Cut Filter Removable (ICR)
|
|
Video
|
|
|
Video Compression
|
H.264 (MPEG-4Part 10/AVC)/MJPEG,Dual codec
|
|
Video Framerate
|
D1@30fps
|
|
Resolution
|
H.264: D1( 704x480@NTSC/30fps,
704x576@PAL/25fps ) CIF( 352x240@NTSC/30fps, 352x288@PAL/25fps ) QCIF ( 176x120@NTSC/30fps, 176x144@PAL/25fps ) MJPEG: D1( 704x480@NTSC/30fps |
|
Bitrate control
|
CBR and VBR, 128kbps ~ 4Mbps
|
|
Multi-streams
|
Triple streaming,Multiple profiles
1xD1, 1xCIF and 1xQCIF |
|
Digital Zoom (PC side)
|
1/4X, 1/3X, 1/2X, 1X, 2X, 4X
|
|
Image Rotation
|
Mirror, Flip, Rotate 180°
|
|
Audio
|
|
|
2 Way Audio
|
Audio Line-in, Audio Line-out
|
|
Compression
|
AMR, G7.11@64kbps, G.726@32kbps/Configure bit rate
|
|
Intelligent Video
|
Privacy mask/Motion detection/Blind
|
|
Network
|
|
|
Streaming Protocols
|
RTSP/RTP/UDP,RTSP/RTP/TCP,RTSP/RTP/ HTTP tunneling, LAN Multicast, Multipart-JPEG
|
|
Supported Protocols
|
IPv4, IPv6, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP,ONVIF
|
|
Mobile Surveillance
|
Iphone,ipad,Android,BlackBerry
|
|
Storage
|
|
|
External
|
1 x Micro SD
|
|
Processors and Memory
|
|
|
CPU
|
ARM9 SOC 800Hz
|
|
Flash and Memory
|
32MB ROM,256MB DDRIII
|
|
I/O and Connectors
|
|
|
LAN
|
1xRJ-45 Ethernet connector
|
|
Audio
|
1x Audio Line-in , 1x Audio Line-out
|
|
Alarm I/O
|
1x Alarm-in (2pin), 1x Alarm-out (3pin)
|
|
Software Compatibility
|
|
|
Browser
|
Intermet Explorer 6.0 or above
|
|
Application software
|
VMS Application software
|
|
OS Supported
|
Microsoft Windows 2000,XP,Vista,Windows 7
|
|
Open API
|
|
|
|
CGI commands to control camera
Media SDK to handle streaming |
|
Power
|
|
|
Power Input
|
AC 24V / POE
|
|
Power Consumption
|
48W
|
|
Dimensions
|
|
|
|
243mm(Φ)x 316.3mm(H)
|
|
Weight
|
|
|
|
3950g
|
|
Operation Environment
|
|
|
Operation temperature
|
-40°C~ +55°C / -10°C~ +55°C (POE)
|
|
Storage temperature
|
-10°C~ +50°C
|
|
Storage humidity
|
0%~95% Non-condensing
|
|
Certifications
|
|
|
|
CE, FCC Class A, RoHS, IP67, IK10, UL
|
|
Warranty
|
24months
|
Features
- H.264/MJPEG Dual Codec & Streaming simultaneously
- D1 (704x576@25fps / 704x480@30fps)
- High Resolution of 560TVL
- Samsung 22X in Optical Zoom
- Mechanical ICR
- Pan 360°/S, Tilt 100°/S
- Intelligent Video Analytics
- Digital I/O for External Sensor and Alarm
- Micro SD Card Supported (SDHC up to 32GB)
- IP67 Water + IK10 Vandal Proof
