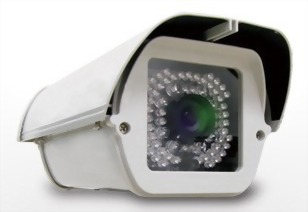

Tube Network Camera
Model :
AAL-6072
|
Camera
|
||
| Sensor | 2 Mega Pixel 1/3" CMOS sensor | |
| Scan Method | Progressive | |
| Lens | 6 mm mega pixel Board lens | |
| Number of Effective Pixel (H*V) | 1600x1200 | |
| Minimum Illumination | 0.1 Lux (AT 30 IRE F1.4 Lens) / 0 Lux (IR on) | |
| SNR(max) | 42.3db | |
| White Balance | Yes | |
| DNR | Yes | |
|
IR Illuminators
|
||
| Wavelength Range | 850nm | |
| Distance | 25M | |
| Day and Night |
ICR (Auto control by photo sensor; Manual control by CGI) IR-Cut Filter Removable |
|
| Lifetime | Up to 20,000 hours | |
|
Video
|
||
| Video Compression | H.264 BP, MJPEG dual codec, dual streaming, multiple profiles | |
| Video Framerate | dual streaming (1280x720/30FPS + 640x352/30FPS) real time | |
| Resolution | H.264 : 1600x1200, 640x480/320x240/160x128 | |
| 1280x720, 640x352/320x176/192x112 | ||
| MJPEG: 1600x1200, 640x480/320x240 | ||
| 1280x720, 640x352/320x176 | ||
| Bitrate control | CBR and VBR, 128kbps ~ 4Mbps | |
| Digital Zoom (PC side) | Yes, 1/2X, 1X, 2X, 4X | |
| Image Rotation | Mirror | |
|
Audio
|
||
| 2 Way Audio | Yes | |
| Compression | AMR, G.711 @ 64kbps, G.726 @ 32kbps/ Configure bit rate | |
|
Network
|
||
| Streaming Protocols | RTSP/RTP/UDP,RTSP/RTP/TCP,RTSP/RTP/HTTP tunneling, | |
| LAN Multicast, Multipart-JPEG | ||
| Supported Protocols | IPv4, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, | |
| FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP | ||
| 3GPP Mobile Surveillance | Yes | |
|
Storage
|
||
| External | 1 x SD Card | |
|
Processors and Memory
|
||
| CPU | ARM9 SOC | |
| Flash and Memory | 16MB ROM, 256MB DDRII RAM | |
|
I/O and connectors
|
||
| LAN | 1x RJ-45 Ethernet connector | |
| Alarm I/O | 1x Alarm-in, 1x Alarm-out | |
| Audio | 1x Audio Line-in, 1x Audio Line-out | |
|
Software
|
||
| Browser | Internet Explorer 6.0 or above | |
| Application Software | VMS Application Software | |
| OS supported | Microsoft Windows 2000, XP , Vista,Windows 7 | |
|
Features
|
||
|
||
|
Open API
|
||
|
CGI commands to control camera
Media SDK to handle streaming |
||
|
Factory Default
|
||
|
Button
|
||
|
Power
|
||
| Power |
DC 12V DC12V/ POE (Option) DC12V/AC24V (Option) |
|
| Power Consumption | TBD | |
|
Physical Properties
|
||
| Dimensions | TBD | |
| Weights | TBD | |
|
Operating environment
|
||
| Operating temperature | -10°C~ +50°C | |
| Storage temperature | -20°C~ +60°C | |
| Humidity | 0% ~ 95% non-condensing | |
|
Certification
|
||
|
CE, FCC Class A, RoHS
|
||
|
Warranty
|
||
|
24 months
|
||
Features
- 2 Megapixel 1/3" CMOS Sensor in High Resolution
- H.264/MJPEG Dual Codec & Streaming simultaneously
- Up to UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)
- Digital I/O for External Sensor and Alarm
- Mechanical ICR
- Built-in IR Illuminator
- 3D Noise Reduction
- 2 Way Audio Support
- 3GPP Support
- PoE Power Over Ethernet IEEE802.3af (Option)
