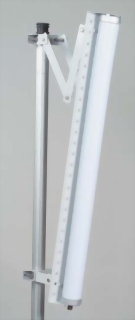

3.3GHz-3.8GHz 15dBi OMNI-Directional Antenna
Model :
AGP-33815
Electrical Specifications
| Frequency Range | 3300 - 3800 MHz |
| V.S.W.R | ≤1.5 |
| Return Loss | ≥-12db |
| Antenna Type | Collinear |
| Gain | 15dBi |
| Polarization | Vertical |
| Maximum Power | 50W |
| Vertical Beam-with | 6° |
| Horizontal Beam-with | 360° |
| Impedance | 50Ω |
| Connector | N - Female |
Mechanical Specifications
| Length (max) | 1485mm |
| Diameter | 68mm |
| Weight | 710g |
| Antenna heart | Brass Brass stack |
| Wind Survival | >150 MPH |
| Radome Material | White Fiberglass |
| Operating Temperature | -40°C to +80°C |
| Mounting | 32 - 45 mm |
Applications
- 3.3-3.8 GHz ISM Band
- IEEE 802.16e Wireless LAN
- Directional and multipoint applications
- Bluetooth
- Public Wireless Hotspot
- WiMAX
- Wireless Video Systems
Features
- Superior performance
- The weight is light
- Good appearance designs
- DC Short lightning protection
- Installed for vertical or horizontal polarization
- Behind and support is an aluminum
- support is up and down or so to adjust
- Outdoor antenna for public hot-spots
- Includes tilt and swivel mast mount brackets
- RoHS Compliant
