4G track & trace with CAN adapter supported
Advanced LTE terminal with flexible inputs configuration
Model :
FMC130
Description

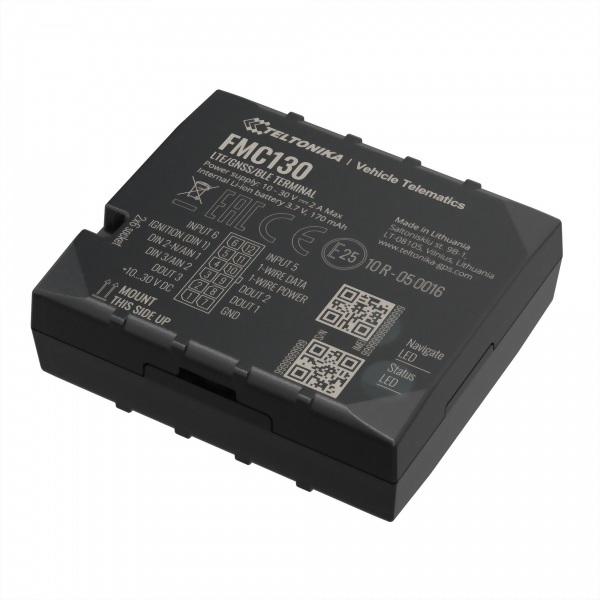

Teltonika FMC130 is a small, professional, real-time tracking terminal with CAN adapter support, GNSS, LTE/3G/GSM connectivity, and a backup battery. The device is equipped with GNSS/Bluetooth & LTE modules, internal GNSS, LTE antennas, configurable digital & analog inputs & digital outputs, negative inputs, and impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars, and so on.
Spacification
GNSS
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
Cellular
| Technology | LTE Cat 1, UMTS, GSM |
| 2G bands (SLM320) |
FMC130-ME1: GSM: B2/B3/B5/B8 FMC130-ME3: GSM: B2/B3/B5/B8 FMC130-ML1: GSM: B2/B3/B5/B8 |
| 2G bands (EC21) |
EC21-EC: GSM: B3/B8 EC21-AU: GSM: B2/B3/B5/B8 |
| 3G bands (EC21) |
EC21-AU: WCDMA: B1/B2/B5/B8 EC21-EC: WCDMA: B1/B8 |
| 4G bands (SLM320) |
FMC130-ME1: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 FMC130-ME3: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 FMC130-ML1: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40 |
| 4G bands (EC21) |
EC21-EC: LTE FDD: B1/B3/B7/B8/B20/B28A EC21-AU: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/ LTE TDD: B40 EC21-J: LTE FDD: B1/B3/B8/B18/B19/B26 EC21-KL: LTE FDD: B1/B3/B8/B18/B19/B26 |
| Data transfer (SLM320) |
LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps
(UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data transfer (EC21) |
LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL) UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL) |
| 3 A, 125 V |
Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm |
| Data support | SMS (text/data) |
Power
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Internal fuse | 3 A, 125 V |
| Power consumption |
At 12V < 3 mA (Ultra Deep Sleep) At 12V < 5 mA (Deep Sleep) At 12V < 16 mA (Online Deep Sleep) At 12V < 18 mA (GPS Sleep) At 12V < 33 mA (nominal with no load) At 12V < 2A Max. (with full Load / Peak) |
Bluetooth
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
Physical specification
| Dimensions | 65 * 56.6 * 20.6 mm (L * W * H) |
| Weight | 55g |
Interface
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 3 |
| Analog Inputs | 2 |
| CAN Adapter Inputs | 1 |
| 1-Wire | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM + eSIM |
| Memory | 128MB internal flash memory |
Operating environment
| Operating temperature (without battery) | -20 °C to +85°C |
| Storage temperature (without battery) | -20 °C to +85°C |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Storage temperature (with battery) | -20 °C to +45 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature |
-20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months |
Features
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection,GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming detection |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
|
Configuration and firmware update |
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
Certification & Approvals
| Regulatory | CE/RED, E-mark, RCM, TELEC, JATE, EAC, REACH, RoHS |
