617～960/1695～2700/3300-7200MHz 4.5/5/5dBi Omnidirectional antenna
Extremely wide-band makes the antenna future proof, suitable
for 2G/3G/4G and 5G networks, as well as WiFi 6E and WiFi 7 networks;
High Performance, Omni-directional, 4.5/5dBi;
Compact size, Φ65*H230mm, also suitable for IoT and M2M applications;
DC Ground, suitable for indoor and outdoor applications;
Electrical specifications
|
Frequency range (MHz) |
617～960 |
1695～2700 |
3300-7200 |
|||
|
Polarization |
Vertical |
|||||
|
Peak Gain (dBi) |
4.5 |
5 |
5 |
|||
|
Horizontal beam width (°) |
360 |
|||||
|
Vertical beam width (°) typ. |
75 |
50 |
30 |
|||
|
Impedance (Ω) |
50 |
|||||
|
VSWR |
≤2.0 |
|||||
|
Maximum power (W) |
50 |
|||||
|
Lighting protection |
DC Ground |
|||||
Mechanical specifications
|
Connector |
N Female |
|
Connector position |
Bottom |
|
Antenna size (mm) |
Φ65*H230 |
|
Weight (kg) |
≤0.4 |
|
Radome material |
Fiberglass |
|
Radome color |
White |
|
Waterproof |
IP65 |
|
Operating temperature (℃) |
-40～60 |
|
Application |
Outdoor |
|
Rated wind velocity (m/s) |
40 |
|
Suitable pole diameter (mm) |
Φ25-Φ50 |
|

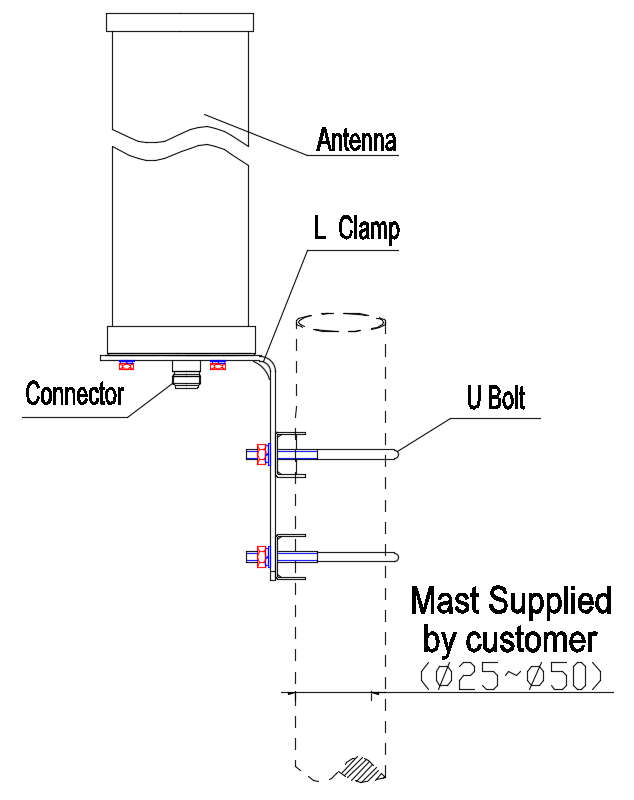

Mounting kit |
JM-M8 |
617～960MHz Typical pattern: 1710～2700MHz Typical pattern: 3300～7200MHz Typical pattern:
Used in 2G/3G/4G/5G/WLAN system
