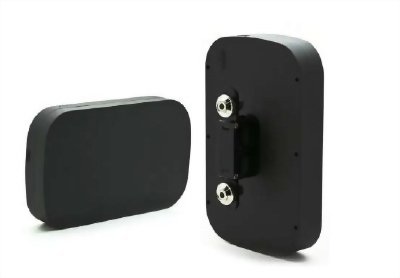

Amplifier antenna(Booster antenna)
Booster Model: AAM-245804-0811-3
Operating range : 2.4~2.5GHz, 5.0~5.8GHz
Channel width: 20Mhz&40Mhz&80Mhz
Supported standards: IEEE 802.11a/b/g/n
Operation mode: Bi-directional, half-duplex, time division duplex, MIMO Connector type: QMA male
|
Item |
Channel 1 |
Channel 2 |
|
Input Power Range |
0-20dBm |
0-20dBm |
|
Transmit Gain |
20±1 dB |
20±1 dB |
|
2.4GHz Receive Gain |
12±1 dB |
12±1 dB |
|
5.8GHz Receive Gain |
16±1 dB |
16±1 dB |
|
Max Output Power |
36dBm |
36dBm |
|
Antenna Frequency |
2400~2500MHz, 5150~5850MHz |
2400~2500MHz, 5150~5850MHz |
|
Antenna Gain |
8-11dBi |
8-11dBi |
Noise figure: ≤3.5dB typical
Frequency response: ±1dB over operating range
Type-C charging interface: Power banks and chargers that support fast charging Battery:3000mAh,support devices to work continuously for more than 8 hours Operating temperature: -20°C to +70°C
Operating humidity: Up to 90% relative humidity
Material: Cast aluminum
LED light: Power/Battery status LED
Booster weight: 0.65KG
Booster size: 200*125*32mm
2.4&5.8GHz dual band ,auto switch frequency
Max 4W output power
Aluminum-alloy case by CNC, anti-interference
Built-in 3000mAh lithium battery
Full kit, easy to install
For house, office, UAV, IP cameras, RC equipment....
