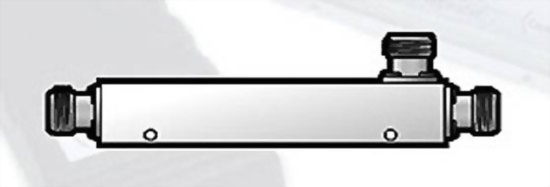

DC Couplers

Model : DC-6/DC-10/DC-15/DC-20

Couplers Specifications

Model No.

DC - 6

DC - 10

DC - 15

DC - 20

Frequency Range

800-2500 MHz

800-2500 MHz

800-2500 MHz

800-2500 MHz

Impedance

50 ohm

50 ohm

50 ohm

50 ohm

Flatness

≤ ± 1 dB

≤ ± 1 dB

≤ ± 1 dB

≤ ± 1 dB

Coupting Factor

6 dB

10 dB

15 dB

20 dB

Insertion Less

≤ 0.3 dB

≤ 0.3 dB

≤ 0.3 dB

≤ 0.3 dB

V.S.W.R.

≤ 1.35 : 1

≤ 1.35 : 1

≤ 1.35 : 1

≤ 1.35 : 1

Power Rating

10 W

10 W

10 W

10 W

Size Dimensions

43x151x20 cm [HxWxD]

43x151x20 cm [HxWxD]

43x151x20 cm [HxWxD]

43x151x20 cm [HxWxD]
