directional-panel-antenna-for-2-4-2-5-ghz

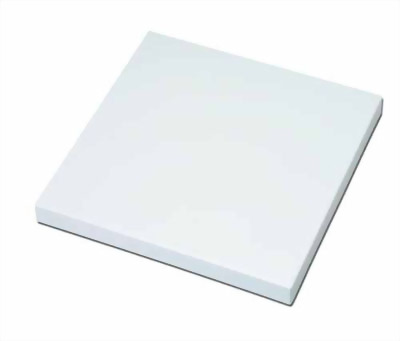

Model : APG-2421

Electrical Specification
Frequency Range: 2.4 ~ 2.5 GHz
Part Number APG-2421
Polarizatin Linear
V.S.W.R. 1 : 1.3 Max
Impedance 50 OHMS ± 5Ω
Gain 21 dBi
Power handling 20W Max
Front to back ratio 35dB
HPBW / horizontal 20°
HPBW / vertical 15°



Mechanical Specification
Connector Tyep N Type Female
Length 370x370x35mm
Weight 2.58kg
Radome color White
Radome materal PVC
