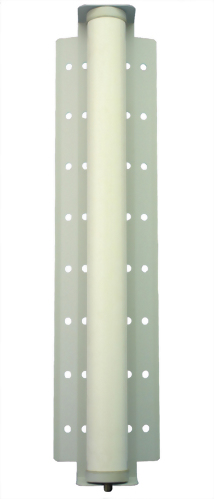

Directional Sector Antenna for 2.4 ~2.5 GHz
Model :
ASC-2415
| Electrical Specification | |
| Frequency Range: | 2.4 ~ 2.5 GHz |
| Part Number | ASC-2415 |
| Polarizatin | Linear |

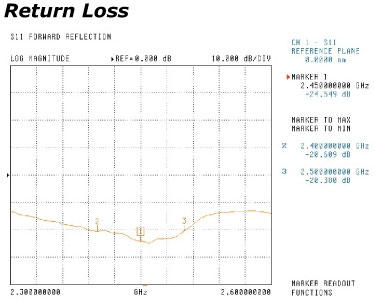

| V.S.W.R. | 1 : 1.3 Max |
| Impedance | 50 OHMS ± 5Ω |
| Gain | 15 dBi |
| Power handling | 15W Max |
| Font to back ratio | 30dB |

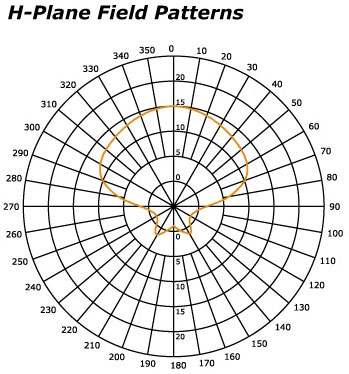

| HPBW / horizontal | 120dB° |

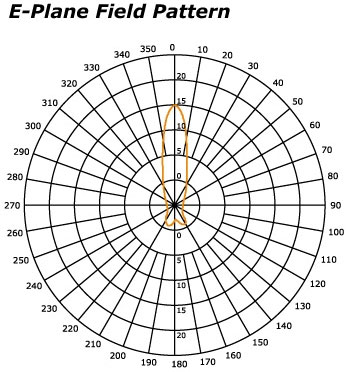

| HPBW / vertical | 10° |
| Mechanical Specification | |
| Connector Tyep | N Type Female |
| Length | 865x130x65mm |
| Weight | 3.44kg |
| Radome color | Gray-white |
| Radome materal | ABS |
