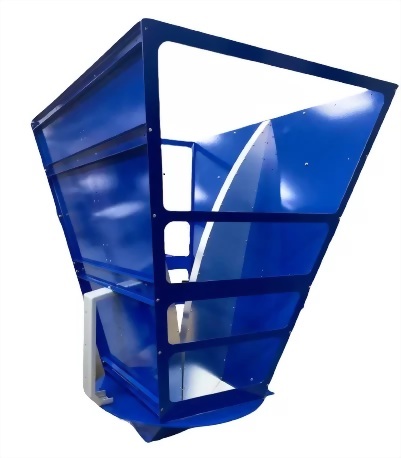

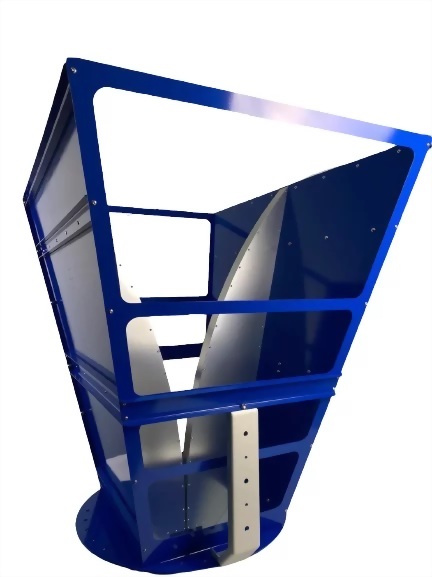

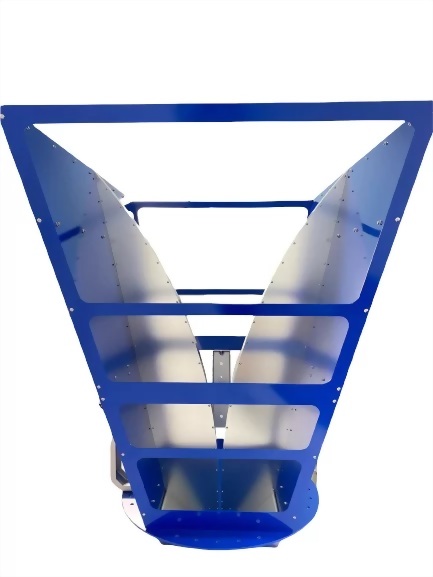

Double-Ridged Horn Antennas
Electrical Specifications
|
Frequency Range |
600MHz - 17GHz |
|
V.S.W. R |
600M-2GHz: 3.5:1 2GHz-17GHz: 2:1 |
|
Antenna Type |
Horn |
|
Radiation |
Directional |
|
Gain |
-5 - 17 |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
500W |
|
-3dB beamwidth |
Horizontal: 2 – 76deg Vertical: 5-124deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Double-Ridge |
|
Internal Material |
Aluminum |
|
Connector |
N-Female |
Mechanicals Specifications
|
Dimension |
350x290x190mm |
|
Antenna Weight |
1.4kg |
|
Application |
Indoor |
|
Parts Material |
Aluminum |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-10 to +60 |
|
Operating Humidity |
10%~70% non-condensing |
|
Storage Humidity |
5%~50% non-condensing |
|
Safety, Emission and other |
RoHS, WEEE |
- 200 MHz to 3GHz frequency band
- 6061 Aluminum metal alloy
- Stainless Steel N-female
- Suitable for EMC/EMI testing
- Low VSWR
- High Gain
- 200MHz to 3GHz Double-Ridged Horn Antenna (Upgrade version of HA-02M03G-NF)
- Antenna measurement
- Communication systems
- Satellite tracking systems
- Electromagnetic Compatibility Testing (EMC Antenna)
