Quad-Ridged Horn Antennas

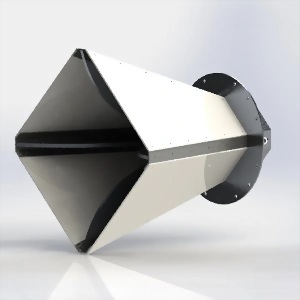

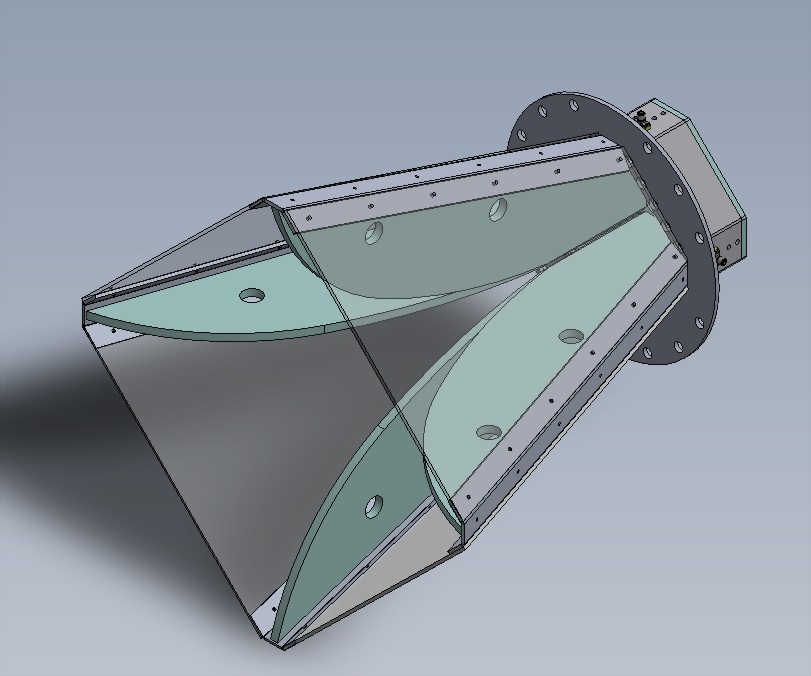

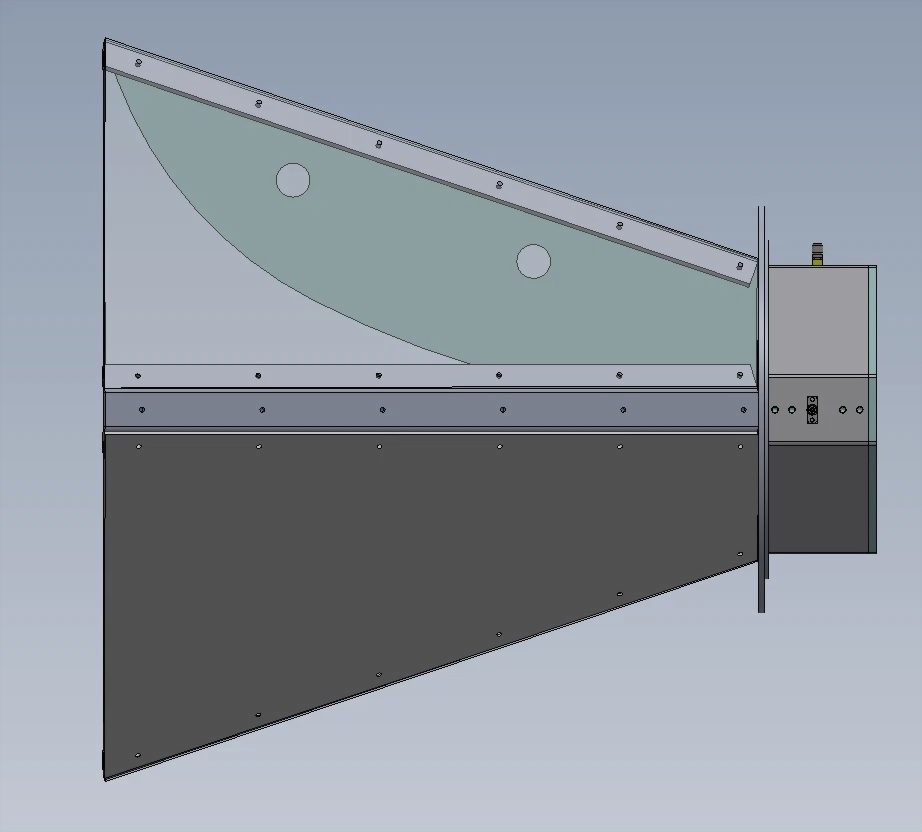

300MHz to 6GHz Quad-Ridged Broadband Horn Antenna
Model :
HQ-03M06G01-SF
Mechanical Specifications
Model :
HQ-03M06G01-NF
LxWxH :
439x439x476mm
Connector :
SMA-Femalex2
Styling :
Dual Polarization Horn
Gain :
3dbi-14dBi
-3db Beam-width :
17 deg- 65 deg
N.W. :
8.4 KG
Frequency :
300MHz to 6GHz
Polarization :
Vertical and Horizontal or ± 45deg
Max Power(C.W) :
50W
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- Consolidated performance database
- 300MHz to 6GHz Quad-Ridged Horn Antenna
- 6061 Aluminum metal alloy
- Antenna Measurement
- Electromagnetic Measurement
- Electromagnetic Compatibility Testing (EMC test)
- Ultra-wideband Radar Detection
