Quad-Ridged Horn Antennas

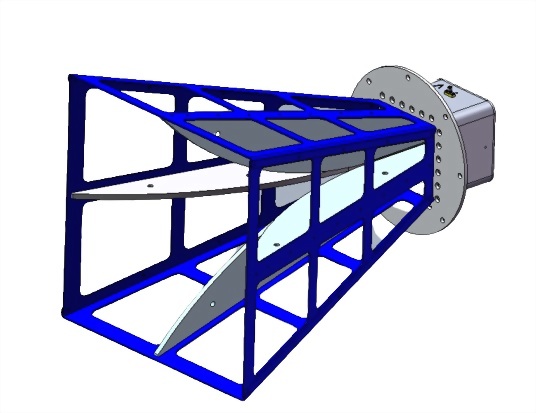

300 MHz to 10 GHz Quad-Ridged Broadband Horn Antenna, SMA-Female Connector
Model :
HQ-300M10G01-SF
Mechanical Specifications
Model :
HQ-300M10G01-SF
LxWxH :
368.8x359.5x577mm
Connector :
SMA-Femalex2
Styling :
Dual Polarization Horn
Gain :
-3db Beam-width :
N.W. :
5.7 KG
Frequency :
300MHz to 8.5GHz
Polarization :
Vertical and Horizontal or ± 45deg
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- Consolidated performance database
- 300 MHz to 10 GHz Quad-Ridged Broadband Horn Antenna, SMA-Female Connector
- 6061 Aluminum metal alloy
- Antenna Measurement
- Electromagnetic Measurement
- Electromagnetic Compatibility Testing (EMC test)
- Ultra-wideband Radar Detection
