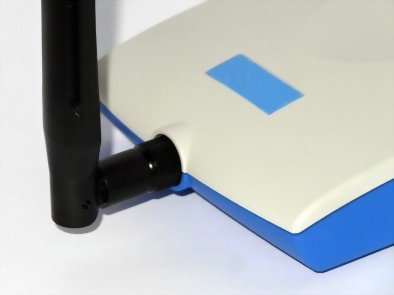

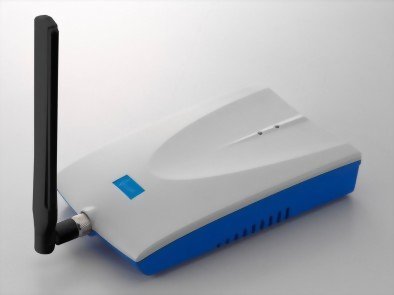

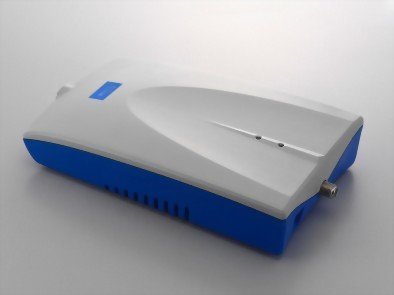

Dualband indoor repeater GSM + 3G

Model : AAM-4000

• The ClearCast® dual band indoor repeater is ideally suitable for providing and/or improving cellular reception not only voice, but also high data rate communication like HSDPA / HSUPA / HSPA+ (mobile internet).

• Its superior amplification and high quality, intuitive installation makes DIY easily which is suitable for home, house, office, coffee shop indoor.





Cell Phone System

GSM + 3G WCDMA

Frequency Range

GSM : Uplink 890~915MHz / Downlink 935~960MHz
3G WCDMA : Uplink 1920~1980MHz / Downlink 2110~2170MHz

Bandwidth

GSM : 25MHz
3G : 60MHz

Gain

Uplink : 50dB / Downlink : 50dB ( GSM )
Uplink : 55dB / Downlink : 55dB ( 3G WCDMA )

Gain Variation

± 3 dB

Noise Figure

Uplink : 8.0dB / Downlink : 8.0 dB

OICP-3

Uplink : 34dBm / Downlink : 20 dBm

P1dB

Uplink : 26dBm / Downlink : 12 dBm

V.S.W.R.

≤ 2.0:1

RF Power Output

Uplink 17dBm / Downlink 2 dBm

Power Supply

90~240VAC 50-60Hz , 12.2VDC 1.0A (max)

Power Consumption

8W

AGC Dynamic Range

20dB (Typ)

Spurious and IMD

-36dBm (max)

Size Dimensions

4.2 x 11.5 x 19.3 cm (H*W*D) / 1.7 * 4.5 * 7.6 in

RF Connector

Outdoor ANT side : F (F) , Indoor ANT side: TNC (F)

Weight

0.7 kg ( approx. )

Case

ABS plastic material , FR 94V0

Installation

Wall or ceiling mount or set on the cabinet

Operating Temp.

-5°C ~ +50°C

• 2G, 3G, HSPA, HSPA+ full dual band operation

• User-orientated design.

• DIY kit with essential accessories included.

• Simple installation process.DIY kit, all accessories included

• Loop oscillation Alarm Indication

• Coverage : 3000 ft²(300m²), 5000ft²(500m²)(by using optional antenna)

• Improve/provide indoor cellphone reception.
