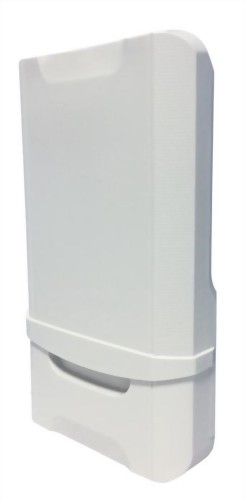

Global band 5G NR CPE with a powerful Wi-Fi 6
Specifications
General Hardware
|
Chipset |
MT6890 SoC: Arm Cortex-A55 2GHz quad-core + 5G NR Wi-Fi 6: MT7915 + MT7975 |
|
Flash |
32 Gb eMMC |
|
RAM |
8 Gb DDR4 |
|
5G NR Antenna |
Built-in directional antenna 3 dBi @ 617 – 960 MHz 6 dBi @ 1452 – 1496 MHz 9 dBi @ 1710 – 2690 MHz 9 dBi @ 3300 – 5000 MHz 7 dBi @ 5150 – 5925 MHz |
|
Wi-Fi 6 Antenna |
4x N-type antenna connector * Package included 4x AOA-2458-46ACM |
|
Interface |
1x waterproof 2.5 Gbps PoE LAN 1x waterproof nano SIM slot 1x reset button 1x waterproof vent |
|
Input Voltage |
PoE: IEEE 802.3at PD 25.5 W |
|
Power Consumption |
Max. 24 W |
|
Dimensions |
230 x 230 x 77.3 mm (9 x 9 x 3 inches) |
|
Operating Temperature |
-20°C ~ 60°C ( -4°F ~ 140°F ) |
|
Waterproof Rate |
IP66 |
|
Material |
ABS UV resistant plastic |
|
Mounting Type |
Pole mount |
5G/4G Standard
|
5G NR |
Supports most main features in 3GPP Release 15 3GPP EN-DC option 3/3A/3X 3GPP SA option 2 Support downlink/uplink 256 QAM Support downlink 4x4 MIMO and uplink 2x2 MIMO |
|
5G NR Bands |
N1/n2/n3/n5/n7/n8/n20/n28/n30/n38/n40/ n41/n66/n71/ n77/n78/n79 |
|
LTE-FDD Bands |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66 |
|
LTE-TDD Bands |
B34/B38/B39/B40/B41/B42/B46/B48 |
|
WCDMA |
B1/B2/B4/B5/B6/B11 |
|
Data Rate |
Peak download speed: 4.09 Gbps Peak upload speed: 978 Mbps |
|
* Option GNSS: GPS/Glonass/Beidou/Galileo |
Wi-Fi Standard
|
Standard |
IEEE 802.11 a/b/g/n/ac/ax (W-Fi 6) |
|
Frequency |
2401 - 2483 MHz |
|
Data Rate |
2.4 GHz: 574 Mbps |
|
TX Power |
2.4 GHz: 21 dBm |
|
RX Sensitivity |
2.4 GHz: -96 dBm |
|
Security |
WEP, WPA, WPA2, WPA3 |
|
Advanced Feature |
MU-MIMO, Beamforming, OFDMA |
- Global 5G NR band
- Wi-Fi 6 data rate up to 1800 Mbps
- Nano SIM slot
- 2.5 Gbps PoE LAN
- Built-in 5G high-gain directional antenna
- External N-type Wi-Fi 6 antenna
- connector
