• 4G/LTE High-Speed 100 Mbps Access point

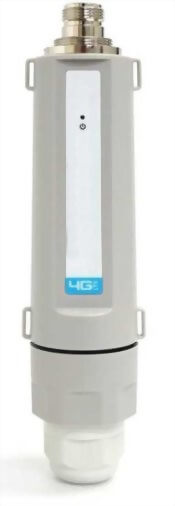

4G/LTE High-Speed 100 Mbps Access point

Model : AAP-4GUSB-ODU

G/LTE High-Speed

Max. 100Mbps downstream and 50Mbps upstream

Backwards compatible with UMTS/WCDMA, EDGE/GPRS

Plug-n-Play Simplicity

Built-in Windows Driver & Utility: auto-installation on

Windows laptop or computer

External Antenna Connector

Standard N female antenna connector allow users to use desired 4G antenna

Waterproof Design

Outdoor IP66 design to protect from dust, oil and water




Specifications



Broadband Wireless

LTE/HSPA+/HSPA/WCDMA (UMTS) GSM/GPRS/EDGE

Frequency

FDD-LTE:

B1 (2100MHz)/B3 (1800)/B7 (2600) B20 (800)

WCDMA / UMTS:

B1 (2100MHz)/ B8 (900MHz)

GSM:

Quad Band (850/900/1800/1900MHz)

Data Rate

FDD-LTE:

R8 Cat.3 100 Mbps DL / 50Mbps UL WCDMA/UMTS:

R99 384 kbps DL / UL

R5 HSDPA 7.2 Mbps DL

R6 HSUPA 5.76 Mbps UL

R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL

R8 HSPA+ 42 Mbps DL / 5.76 Mbps UL

Interface

Mini-USB 2.0 Standard 6 PIN SIM card

Antenna Connector

N type female

Antenna

High-gain 4G/LTE Omni Antenna

LED Indicator

Power On/Off

Waterproof IP rate

IP66

Operation System Support

Windows Vista, 7, 8, 10 32/64bit support via auto-install utility driver * Mac, Linux, iPad, iPhone, and smart phone users: please use with R36(sold separately) and obtain Internet access through wireless signal from R36

Operating Temperature

0°C ~ 45°C

Storage Humidity

5% ~ 98% (Non-condensing)

Dimensions

185 x 47 mm

Weight

135g



1.G/LTE High-Speed

2.Plug-n-Play Simplicity

3.External Antenna Connector

4.Waterproof Design

Plug-n-Play Driver/Utility Auto-Installation on Windows OS platform


4G Mobile Internet Sharing via R36

(Ideal solution for home, RV and boat for multiple-user Internet access)
