LTE Outdoor CPE with Indoor Wireless Router

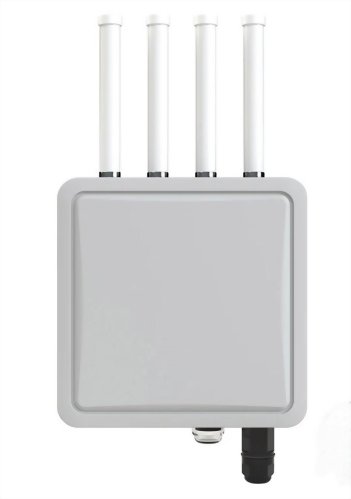

KA5312 is a high-performance LTE ODU device, which can provide strong accessibility to the LTE network, and has been designed to meet industrial-grade IP65 dust-proof and water-proof standard. KA5113 is a AC1200 wireless router which can provide ODU power supply. KA5312 ODU with KA5113 IDU in combination is the ideal solution for residential LTE network.
Hardware Specifications
Spec
Description
LTE Chipset
GCT GDM7243QT
LTE standard
3GPP Release 10/11 CAT 6(1)
Host Chipset
MT7621A
Flash
7243QT - 2Gb;
MT7621A – 1Gb
RAM
7243QT -
1Gb;
MT7621A – 1Gb;
Power Supply
Gigabit PoE, (2)
Typical value 24V 1.0A
Maximum Power Consumption
<14W
IP rating
IP65 (ODU)
LED
ODU
Power/WAN/LAN/SIM/Signal Strength (3)
IDU
Power/Internet/WiFi 2.4G/ WiFi
5G/USIM/Signal Strength(4)
USIM
Support 1.8V/3.0V 2FF USIM
Antenna
4 directional antennas
