High Gain Omni Directional Antenna for 2.4GHz
Model :
AGP-I2405
| Electrical Specification | |
| Frequency Range: | 2.4 ~ 2.5 GHz |
| Part Number | AGP-I2405 |
| Polarizatin | Linear; Vertical |
| V.S.W.R. | 1.92:1 max. |
| Impedance | 50Ω |
| Gain | 5 dBi |
| Power handling | 10W |
| Connector: | RP SMA Plug |

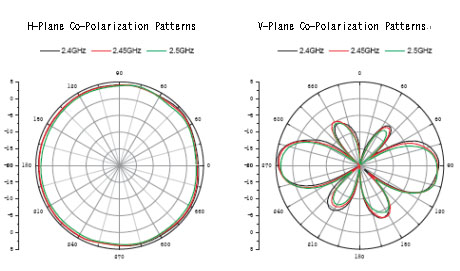

| HPBW / horizontal | 360dB° |
| HPBW / vertical | 29° |
| Cable: | GDC-101(Black); L:1m |
| Mechanical Specification | |
| Operating Temperature | -10 °C~60 °C |
| Storage Temperature | -10 °C~70 °C |
| Humidity | 95% RH |
| Radome Material | ABS+PC |
| Color | Black |

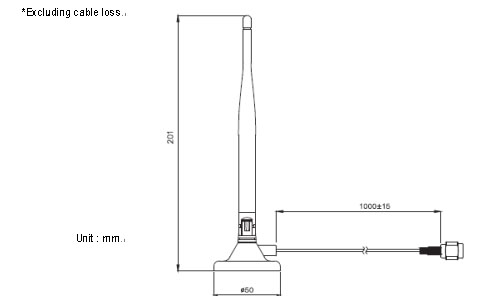

| Dimensions | 50L x 50W x 201H |
| Weight | 75 gfw |
| Mounting Function |
Weight Stand. Wall Mount. Magnet Mount. |
