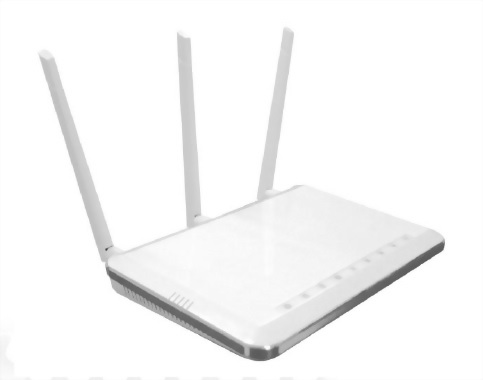

HIGH POWER AC1750 WI-FI ROUTER
Specifications
|
Wireless Standard |
802.11a/b/g/n/ac |
|
Frequency Band |
2.412GHz ~ 2.484GHz, 5.18GHz ~ 5.825GHz |
|
Wireless Data Rate |
802.11a/g: up to 54Mbps 802.11b: up to 11Mbps 802.11n: up to 300Mbps 802.11ac: up to 867Mbps |
|
Wireless Output Power |
802.11a: 24 ± 1dBm 802.11b: 27 ± 1dBm 802.11g: 22 ± 1dBm 802.11n: 21 ± 1dBm 802.11ac: 16 ± 1dBm |
|
Wireless Receive Sensitivity |
802.11a: -94± 1dBm 802.11b: -91± 1dBm 802.11g: -85± 1dBm 802.11n: -84 ± 1dBm 802.11ac: -66 ± 1dBm |
|
Wireless Security |
WEP, WPA, WPA2, WPA Mixed, WPS |
|
Antenna |
Three high gain 5dBi dual band dipole (SMA Connector) |
|
Physical Interface |
One Gigabit RJ-45 port (WAN) Four Gigabit RJ-45 ports (LAN) One USB 2.0 port for storage devices WPS push button Reset button Power On/Off Button LED On/Off Button DC jack |
|
Operation Temperature |
0°C ~ 50°C |
|
Storage Temperature |
-10°C ~ 60°C ambient temperature |
|
Humidity |
10 ~ 85% typical |
|
Power Consumption |
18W (Maximum) |
|
Power Requirement |
DC 12V/1.5A |
|
Certification |
FCC, IC |
•Comply with IEEE 802.11a/b/g/n/ac
•Maximum wireless data rate up to1300Mbps using 80MHz bandwidth.
•Reliable data security including WEP, WPA/WPA2, WPA-PSK/RADIUS, WPA2-PSK/RADIUS with
TKIP/AES encryption and WPS
•QoS bandwidth management.
•Access Control list by MAC and IP address.
•Essential firewall settings with port filtering/port forwarding/DMZ/VLAN/Denial of Service?
•Available USB storage as local or remote FTP sharing.
•IPv6 support
