Long Distance, High Bandwidth
700MHz / 900MHz / 2.3~2.5GHz 2.7~2.9GHz / 3.5GHz / 4.7~4.9GHz / 4.9~6.1GHz
APM Wireless Broadband product line are adopting Wireless
TDMA concept to provide an affordable and reliable rural connectivity.All of products are high-performance outdoor-deployable wireless
bridge that provides wireless connectivity between multiple network
locations. With the high throughput and long-distance transmission, it
is the appropriate backhaul solution for Carriers, Service Providers
and Enterprises.
|
HARDWARE |
|
|
Memory |
16MB Flash + 32MB SDRAM |
|
LAN |
1 x 10/100BaseT RJ-45 with Auto-MDIX |
|
Power Over Ethernet (PoE) |
Yes (802.3af) |
|
Default Button |
Yes |
|
Enclosure |
Metal Case, IP 68 Verified |
|
Lighting Protect |
From Ethernet |
|
FEATURE |
|
|
Operating Mode |
Bridge (PTP) / P2MP CPE |
|
Link Test Tool |
Yes (Real Time Local and Remote RSSI) |
|
Radio Bandwidth |
5 / 10 / 20 / 40 Mbps |
|
TDMA |
Yes |
|
TDM Coordination |
Yes |
|
QoS |
TDD / 802.1P |
|
Channel Selection |
Yes |
|
Auto Channel |
Yes |
|
DFS/TPC |
Yes |
|
Spanning Tree (STP) |
Yes |
|
VLAN |
Yes (802.1Q) |
|
NetBIOS Name |
Yes |
|
Space In Meters |
Yes (Auto) |
|
NTP Client |
Yes |
|
CLI |
Yes (SSH) |
|
Backup / Restore |
Yes |
|
System Log |
Yes |
|
Remote Log Server |
Yes |
|
SECURITY |
|
|
Encryption |
AES 256bit |
|
MANAGEMENT |
|
|
Web Base Management |
Yes |
|
SNMP V.2 |
Private MIB, 802.11 MIB |
|
Windows Tool |
Yes, WiVIEW 2 |
|
PHYSICAL |
|
|
Operating Temperature |
-30 ~ 80C |
|
Operating Humidity |
10 ~ 95% RH |
|
Model |
Frequency MHz |
Antenna dBi |
Output Power dBm |
Sensitivity dBm |
Dimension mm |
Weight kg |
|
|
P2P |
AAP-0700 |
703-718 |
N-Jack |
28 |
-92 |
259x250x75 |
1.8 |
|
AAP-0760 |
763-778
7 |
N-Jack |
28 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-0760P9 |
763-778 |
9 |
28 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-800P10 |
800-860 |
10 |
28 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-0900 |
903-928 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-0900P12 |
903-928 |
12 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2300 |
2312-2392 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-2300P19 |
2312-2392 |
19 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2300H |
2312-2472 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-2300HP19 |
2312-2472 |
19 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2400 |
2412-2472 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-2400P19
|
2412-2472 |
19 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2700 |
2700-2900 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-3300 |
3300-3800 |
N-Jack |
26 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-5100 |
5120-6060 |
N-Jack |
25 |
-90 |
259x250x75 |
1.8 |
|
|
AAP-5100P23 |
5120-6060 |
23 |
25 |
-90 |
335x335x81 |
2.9 |
|
|
AAP-4700 |
4700-7900 |
N-Jack |
18 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-4700P23 |
4700-7900 |
23 |
18 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-0700H |
703-718 |
N-Jack |
28 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-0760H |
763-778 |
N-Jack |
28 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-0760HP9 |
763-778 |
9 |
28 |
-92 |
335x335x81 |
2.9 |
|
|
Repeater |
AAP-5100P23+N |
5120-6060 |
19+N-Jack |
25 |
-90 |
335x250x81 |
3.7 |
|
AAP-2400P19+N |
2412-2472 |
23+N-Jack |
23 |
-92 |
335x250x81 |
3.7 |
|
|
P2MP |
AAP-0900PMP |
903-928 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
AAP-0900PMP12 |
903-928 |
12 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2300PMP |
2312-2392 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-2300PMP19 |
2312-2392 |
19 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2320PMP |
2312-2472 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-2320PMP19 |
2312-2472 |
19 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2400PMP |
2412-2472 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-2400PMP19 |
2412-2472 |
19 |
23 |
-92 |
335x335x81 |
2.9 |
|
|
AAP-2700PMP |
2700-2900 |
N-Jack |
23 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-3300PMP |
3300-3800 |
N-Jack |
26 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-5100PMP |
5120-6060 |
N-Jack |
25 |
-90 |
259x250x75 |
1.8 |
|
|
AAP-5100PMP23 |
5120-6060 |
23 |
25 |
-90 |
335x335x81 |
2.9 |
|
|
AAP-4700PMP |
4700-4900 |
N-Jack |
18 |
-92 |
259x250x75 |
1.8 |
|
|
AAP-4700PMP23 |
4700-4900 |
23 |
18 |
-92 |
335x335x81 |
2.9 |
|
‧ Reliable Outdoor Enclosure
‧ IP67 Qualified
‧ Waterproof
‧ Vent design
‧ Good Balance on low Cost and High Performance

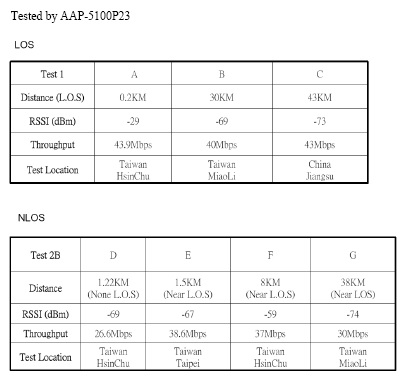

‧ Actual reachable testing range > 50 km
‧ High throughput
‧ Support point to point , point to multi point and Relay functions
‧ Ready for Next Generation Technology
‧ Software Features
‧ High security (AES)
‧ Ease of Installation (Real time Link Test for Local and Remote RSSI)
‧ Transmit Power Control
‧ Bandwidth Control (40 / 20 / 10 / 5 MHz)
‧ Wireless TDMA (TDD Mode)
‧ VLAN Support
