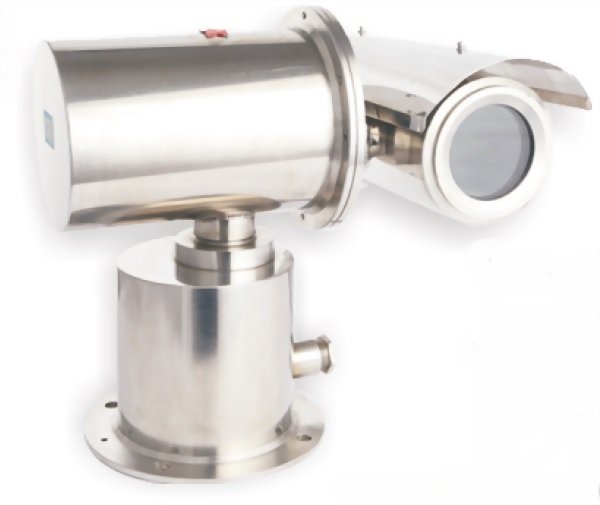

Outdoor Explosion-proof Integration Camera
The AAL-E8007 is a Outdoor Explosion-proof integration camera, and this camera can design
with windshield wiper. It can fit for any brand zoom lens.
Application: Ship tanks, oil field, oil depot,
chemical industr y, gas, ferr y-place, deser t,
frontier defence, magazine.
|
Mark of Explosion-proof |
ExdⅡCT6/DIP A20Ta, T6 |
|
Certification No. Of Explosion-proof |
CNE×09.0239X |
|
Material |
Stainless steel 304 or 316L |
|
Grade of Explosion-proof |
IP68 |
|
Bearing way |
Side bearing |
|
Rotate horizontal |
0-360º |
|
Rotate Vertical |
±90º |
|
Rotate speed horizontal |
7º/S±5% |
|
Rotate speed Vertical |
7º/S±5% |
|
Surface treatment |
Stainless steel surface shining treatment |
|
Weight |
12kg |
|
Wall mounting |
AAL-9023 |
|
Voltage |
AC24V |
|
Consumption |
30W |
|
Electrical connection |
1pcs G3/4º 6core cable |
|
Ambient temperature |
-30ºC~+65º |
|
Communication mode |
RS-485 |
|
Communication rate |
2400/4800/9600/19200 |
|
Communication protocol |
PELCO-D/P optional |
|
Position preset |
128 |
|
Decoder |
Inside or outside |
|
Dynamo |
LSHT PMDC motor with high-precision planet-gear speed reducer |
|
Transmission mechanism |
Smooth processing & preservative treatment |
|
Camera |
FCB-CX480CP recommended |
|
Sky shade |
Standard |
|
Windscreen wiper |
Invisible, nanometer |
Accessories
|
Model No. |
Specification |
Picture |
|
AAL-Ex80(Big) |
Cast aluminium, Standard: GB3836.1, GB3836.2Ex-proof certificate: CNE×09.0240Available space: 350×240×117mm5 connection ports(output & input)Inner diameter of Ø20mm×1.5 and 6mmEx-proof marking: ExdⅡCT6 |
|
|
AAL-Ex80(Middle) |
Cast aluminium, Standard: GB3836.1, GB3836.2Ex-proof certificate: CNE×09.0240Available space: 258×198×80mm5 connection ports(output & input)Inner diameter of Ø20mm×1.5 and 6mmEx-proof marking: ExdⅡCT6 |
|
|
AAL-Ex80(Middle) |
Cast aluminium, Standard: GB3836.1, GB3836.2Ex-proof certificate: CNE×09.0240Available space: 220×165×75mm3 output with inner diametter of Ø20mm×1.51input with inner diameter of 1.5Ex-proof marking: ExdⅡCT6 |
|
|
AAL-Ex80(Small) |
Cast aluminium, Standard: GB3836.1, GB3836.2Ex-proof certificate: CNE×09.0240Available space: 125×119×58mm1 input and 1 output with inner diameter of Ø20mm×1.5. Ex-proof marking: ExdⅡCT6 |
|
|
AAL-BNG1000 |
Full Stainless steel, ripple tube insert diameter of Ø20mm×1.5 or 6mm normally 1 meter(can custom made 1.5M, 2M)Suitable for active point. when using complex cable, one point needs at last 2-3 pcs tubeEx-proof marking: ExdⅡ |
|
|
AAL-9023 |
Suitable for E8007/E8009/E8005 |
|
．Under standard of GB3836.1-2000 and GB12476.1-2000
．ExdⅡCT6/DIP A20Ta, T6, IP68
．Can work under ⅡCgac environment or flammable dust atmosphere
．Stainless steel 304 or 316L
．18X ZOOM
．PELCO-D/P optional
．Certification No. Of Ex-proof CNE×09.0239X
