PD Divider

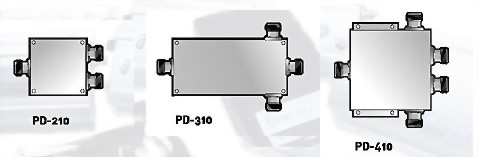

Model : PD-210/PD-310/PD-410

Divider Specifications
Model No. PD - 210 PD - 310 PD - 410
Frequency Range 800-2200 MHz 800-2200 MHz 800-2200 MHz
Impedance 50 ohm 50 ohm 50 ohm
Divider Factor 1 : 2 1 : 3 1 : 4
Divider Loss 3.0 dB 4.8 dB 6.0 dB
Insertion Less ≤ 0.3 dB ≤ 0.3 dB ≤ 0.3 dB
Inbalance Amplitude : ≤ 0.3 dB Amplitude : ≤ 0.3 dB Amplitude : ≤ 0.3 dB
Phase : ≤ 5°C Phase : ≤ 5°C Phase : ≤ 5°C
V.S.W.R. 1.35 : 1 1.35 : 1 1.35 : 1
Power Rating 10 W 10 W 10 W
Size Dimensions 2.0 × 5.8 × 9.8 cm 2.0 × 8.5 × 13.5 cm 2.9 × 11.4 × 11.6 cm
[H×W×D] 0.8 × 2.3 × 3.9 in 0.8 × 3.3 × 5.3 in 0.8 × 4.5 × 4.6 in
