Quad-Ridged Horn Antennas

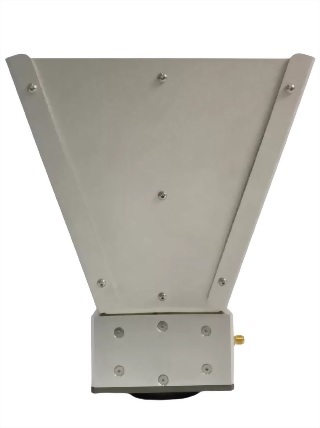

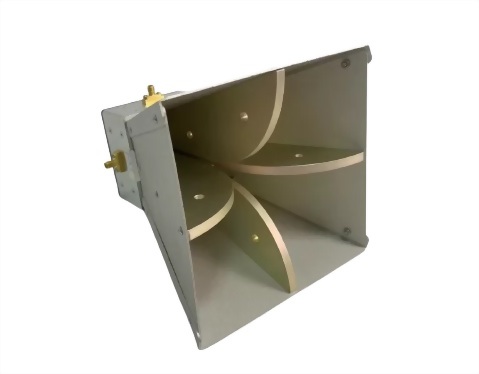

2 GHz to 18 GHz Quad-Ridged Broadband Horn Antenna
Model :
HQ-0218G01-SF
Specifications
V. 37 deg
H. 33 deg
Model :
HQ-0218G01-SF
LxWxH :
173x143x146mm
Connector :
SMA-Female x 2
Styling :
Dual Polarization Horn
Gain :
3dbi-18dBi
-3db Beam-width :
N.W. :
1.06 KG
Frequency :
2GHz - 18GHz
Polarization :
Vertical and Horizontal or ± 45deg
Max Power(C.W) :
70W (peak)
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- Consolidated performance database
- 2 GHz to 18 GHz Quad-Ridged Horn Antenna
- 6061 Aluminum metal alloy
- Stainless Steel N-female
- Taiwan Design, Made in Taiwan
