Double-Ridged Horn Antennas
Electrical Specifications
|
Frequency Range |
600MHz - 17GHz |
|
V.S.W. R |
600M-2GHz: 3.5:1 2GHz-17GHz: 2:1 |
|
Antenna Type |
Horn |
|
Radiation |
Directional |
|
Gain |
-5 - 17 |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
500W |
|
-3dB beamwidth |
Horizontal: 2 – 76deg Vertical: 5-124deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Double-Ridge |
|
Internal Material |
Aluminum |
|
Connector |
N-Female |
|
Dimension |
350x290x190mm |
|
Antenna Weight |
1.4kg |
|
Application |
Indoor |
|
Parts Material |
Aluminum |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-10 to +60 |
|
Operating Humidity |
10%~70% non-condensing |
|
Storage Humidity |
5%~50% non-condensing |
|
Safety, Emission and other |
RoHS, WEEE |
- High Power 500W (peak)
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- Consolidated performance database
- 6061 Aluminum metal alloy
- Stainless Steel N-female
- Taiwan Design, Made in Taiwan

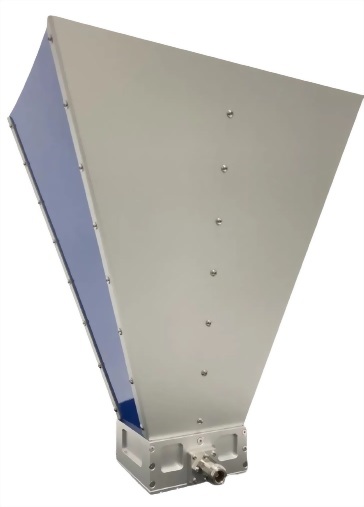

To improve the product's efficiency, we researched and improved the original product from 650MHz to 8GHz into the new AHA-06M17G-NF, which operates from 600MHz to 17GHz and has -5 to 19dBi, 500W output power.
- Double-Ridged horn antenna with frequency from 600 MHz to 18GHz (for the original version, please check here: HA-065M08G-NF)
- EMC/ EMI test Antenna
