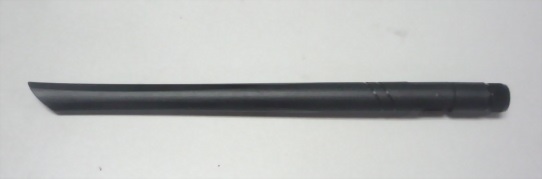

Rubber Antenna

Model : AGP-I245005SM

Specification



A. Electrical Characteristics

Frequency

2400 ~ 2500 MHz

5150 ~ 5850 MHz

S.W.R.

<= 2.0 @ 2400 ~ 2500 MHz

<= 2.0 @ 5150 ~ 5850 MHz

Antenna Gain

5.0 ± 0.5 dBi @ 2400 ~ 2500 MHz

5.0 ± 0.5 dBi @ 5150 ~ 5850 MHz

Efficiency

>81% @ 2400 ~ 2500 MHz

>73% @ 5150 ~ 5850 MHz

Polarization

Linear

Impedance

50 Ohm

B. Material & Mechanical Characteristics

Material of Radiator

Cu

Material of Plastic

Body: TPEE

Hinge: ABS

Holder: ABS

Cable Type

RG-178

Connector Type

SMA Male Reverse

Connector Pull Test

>= 5 Kg

C. Environmental

Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ + 80 ˚C

Characteristics and Reliability Test

Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

C2

Antenna

Gain

Set DUT on Antenna Chamber; make individual calibration to test

Directive DUT specification

M1

Vibration

GB / T2423 . 48-1997

Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

GB / T2423.8-1995

Height: 1.0 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M4

Terminal-

Pull Test

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Terminal-

Torque Test

Holding with individual specification; applied

clockwise and counterclockwise to the axis of

terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M6

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

GB / T 2423 . 17- 93

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 24 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

GB / T 2423 . 4 - 93

Temp: 80°C / 12 H; -40°C / 12H RH: >= 90%;

Time: 24 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

GB / T 2423 . 22 - 87

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

GB /T 2423 . 2 - 89

Temp: 80°C; Time: 24 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC



  Antenna - S Parameter Test Data





    Antenna - Radiation Pattern Test Data



2400 MHz

2450 MHz

2500 MHz

X-Y Plane

X-Y Plane

X-Y Plane



4800 MHz

5300 MHz

5800 MHz

X-Y Plane

X-Y Plane

X-Y Plane







2400 MHz

2450 MHz

2500 MHz



4800 MHz

5300 MHz

5800 MHz
