Ceiling Antenna

Model : ACP-07270205M

Electrical Specification

Frequency

698-800MHz

800-960MHz

1710-2700Mz

Polarization Type

Vertical

Gain

2±1 dBi

3±1 dBi

5±1 dBi

VSWR

1.5:1

Horizontal beamwidth

360°

360

360°

Vertical beamwidth

90°±5°

70°±5°

50°±5°

Isolation

≥16 dB

≥19 dB

≥23 dB

PIM3@ 2*43dBm

≤-107dBm

Input Impedance

50Ω

Max power

50W

Lightning protection

DC Ground

Mechanical Specification

Connector Type

2*N Female

DimensionsD*H

φ204*70mm(φ8.03*2.76in)

Radiating Element Material

Aluminium

Reflector Material

Aluminium

Weight

0.41kg

Radome material

UABS

Radome  Color

White

Mounting

Ceiling Mounting

Cable

RG141

Operating temperature

-40ºC60ºC





























































Related Products

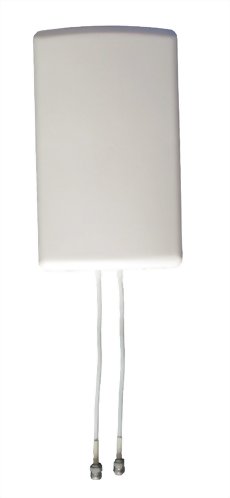

Panel Antenna

Panel Antenna

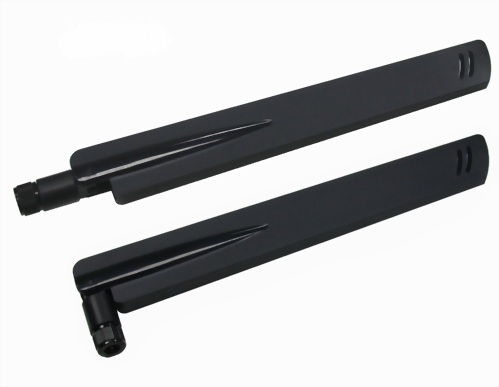

LTE/4G Antenna
