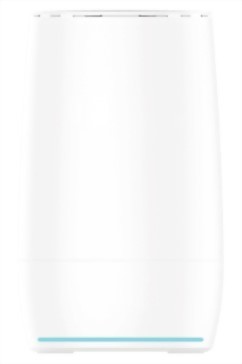

AAP-W6-3100
|
Chip Set |
MT7981B+MT7976CN+MT7531AE |
|
FLASH |
128MB |
|
DDR3 |
256MB |
|
Wireless rate |
2.4 GHz：574Mbps@2*2Wi-Fi 6 |
|
5GHz：2402Mbps@3*3Wi-Fi 6 |
|
|
Antenna |
5 dBi build-in antenna |
|
Interface |
1* GE WAN+2* GE LAN |
|
Button |
1* MESH+1*RESET |
|
Indicator |
Red/Blue |
|
Wi-Fi Agreement |
IEEE 802.11b/g/n/ac/ax support |
|
MIMO |
MU-MIMO |
|
Work model |
Routing mode, AP mode |
|
Management |
WEB Management |
|
State |
System state, interface state, routing table |
|
Wireless Configuration |
Wi-Fi Basic Parameter Configuration / Blacklist |
|
Network settings |
Working mode LAN/WAN address setting |
|
System |
System properties/password modification/backup upgrade/restart |
|
Setup Wizard |
Quick Configuration Wizard |
|
MTBF |
>30000 H |
|
power consumption |
≤12W |
|
Working temperature |
0℃～40℃ |
|
Storage temperature |
-40℃～70℃ |
|
Working humidity |
10%~95%, no condensation |
|
Storage humidity |
5%~95%, no condensation |
|
Power adapter |
DC 12V/1A |
