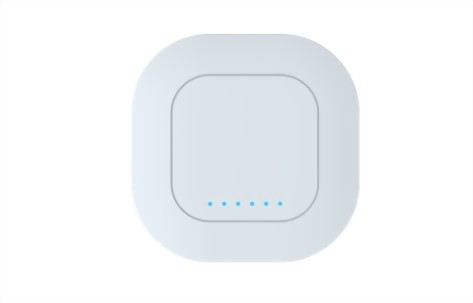

Wi-Fi6 2.5G MESH AP
|
Chip Set |
MT7981B+MT7976CN |
|
FLASH |
128MB |
|
DDR3 |
256MB |
|
Wireless rate |
2.4 GHz：574Mbps@2*2Wi-Fi 6 |
|
5GHz：2402Mbps@2*2Wi-Fi 6 |
|
|
Antenna |
5*5 dBi built-in antennas |
|
Interface |
1* 2.5GE WAN+1GE LAN |
|
Button |
RESET, MESH |
|
Indicator |
SYS WAN LAN 2.4G 5G MESH |
|
Wi-Fi Agreement |
IEEE 802.11b/g/n/ac/ax support |
|
MIMO |
MU-MIMO |
|
Work model |
Routing mode, AP mode |
|
Management |
WEB Management |
|
State |
System state, interface state, routing table |
|
Wireless Configuration |
Wi-Fi Basic Parameter Configuration / Blacklist |
|
Network settings |
Working mode LAN/WAN address setting |
|
System |
System properties/password modification/backup upgrade/restart |
|
Setup Wizard |
Quick Configuration Wizard |
|
MTBF |
>30000 H |
|
power consumption |
≤12W |
|
Working temperature |
0℃～40℃ |
|
Storage temperature |
-40℃～70℃ |
|
Working humidity |
10%~95%, no condensation |
|
Storage humidity |
5%~95%, no condensation |
|
Power adapter |
802.3af/at PoE, or 12V DC (Power adapter: AC 100~240V, 50/60Hz) |
Highly integrated dual-core 1.3GHz processor
IEEE 802.11a/b/g/n/ac/ax wireless protocol, 160MHz bandwidth,
2.4G 574Mbps+5G 2402Mbps
Built-in 5dBi omnidirectional gain antenna, longer transmission distance
Easy to install: Celing or wall-mounting, neat and beautiful, integrated into the home environment
Stable network coverage: Support MESH, TR069, IPv4/IPv6 dual-stack etc., could be 2pcs as a pack or 3pcs as a pack, to deploy Whole Home WiFi
Flexible power supply：802.3af/at PoE, or 12V DC
