500~6000MHZ Hi Power Amplifier

Model : AAM-6559-200W

Solid State CW & Pulsed Power Amplifier

High reliability and ruggedness


Item



Specification

Frequency Range

500-1000MHz

5200-5900MHz

500-2500MHz

2500-6000MHz

Output Power

>53dBm



47dBm

Input Power





5-10dBm

Gain

>49dBm



>43dBm

Gain Flatness





±3dB

IN Return Loss





15

OUT Return Loss





10

Spurious Signals





<-60dBC

Operating Voltage





30±1V

Working Current

<25A



<8A

RF Impencance





50 Ω

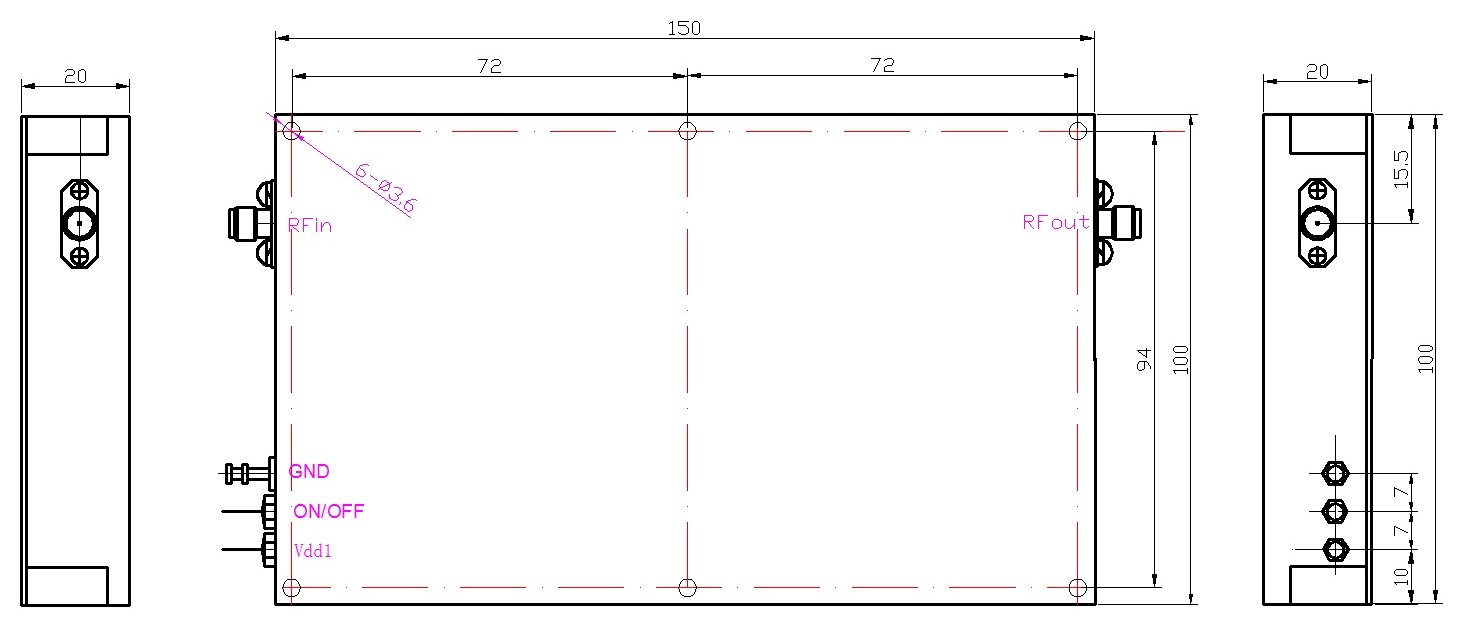

Dimensions

<250X150X25mm

<150X100X20mm

RF    IN/Out



SMA Female

DC Connectors

Through hole Capacity

Operating Temperature



-25 to +65
