500~6000MHZ Hi Power Amplifier

Model : AAM-5159-100W

Solid State CW & Pulsed Power Amplifier

High reliability and ruggedness


Item

Specification

Frequency Range

5300-5900MHz

Output Power

100W

Input Power

5-10dBm

Gain

>45dB

Gain Flatness

±3dB

IN Return Loss

15

OUT Return Loss

10

Spurious Signals

<-60dBC

Operating Voltage

30±1V

Working Current

<12A

RF Impencance

50 Ω

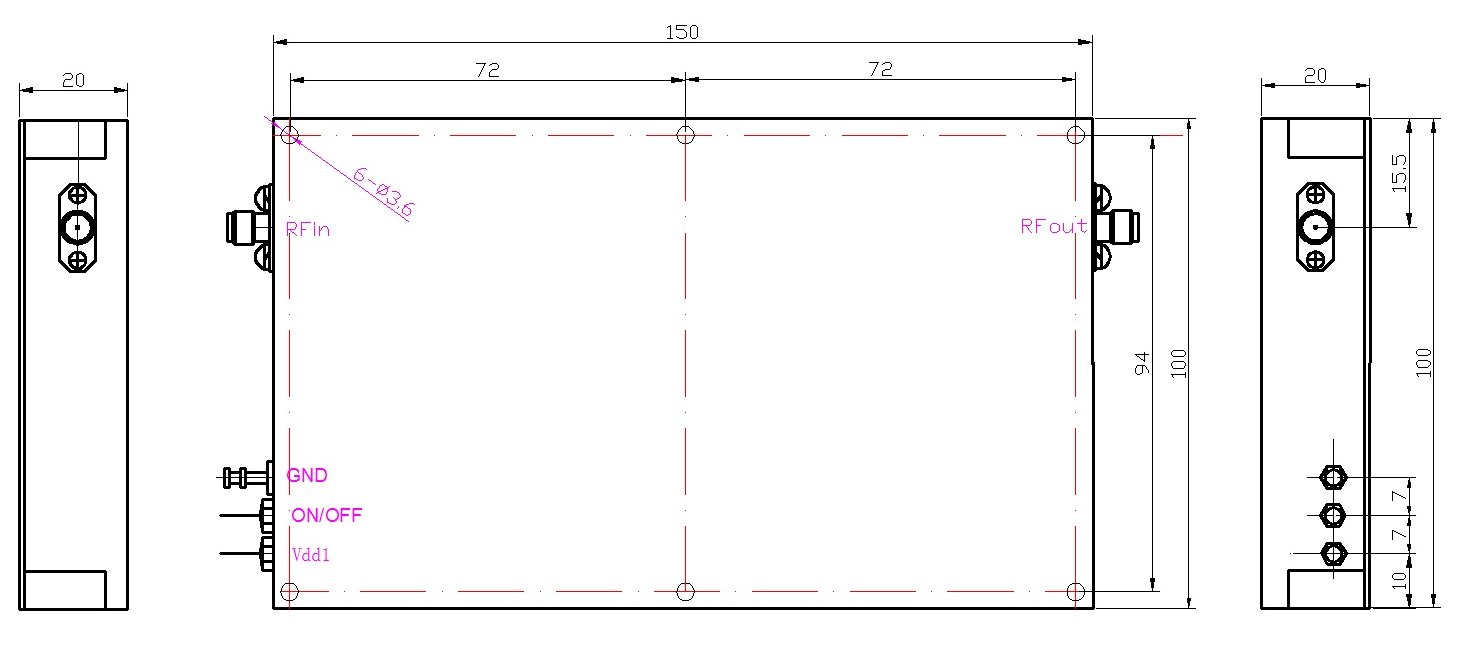

Dimensions

About 180X100X25mm

RF    IN/Out

SMA Female

DC Connectors

Through hole Capacity

Operating Temperature

-25 to +65
