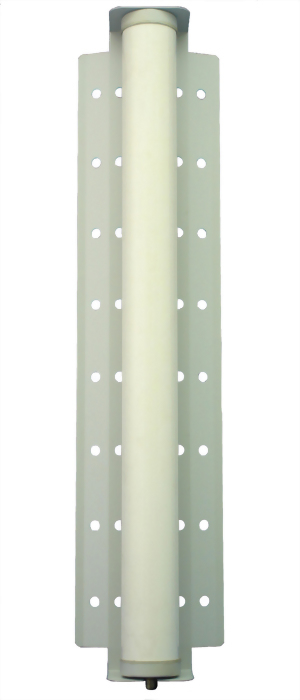

2.4GHz-2.5GHz 120 Deg 15dBi Sector Directional Antenna

Model : ASC-2415-1

Electrical Specifications

Frequency Range 2400 - 2500 MHz
V.S.W.R ≤ 1.5:1
Return Loss ≥-12db
Gain 15dBi
Polarization  Vertical
Maximum Power 50W
Vertical Beam-with 15°
Horizontal Beam-with 120°
Impedance 50Ohm
Connector N-Female

Mechanical Specifications

Length  900mm
Diameter 200mm
Weight  3040g
Radome Material  UV-Polymer
Operating Temperature -40°Cto +85°C
Clamps U-bolt
Down-tilt 0 ~ 30 degrees

Applications:

  • 2.4-2.5GHz ISM Band
  • IEEE 802.11b, 802.11g,802.11n Wireless LAN
  • Directional and multipoint applications
  • Bluetooth
  • Public Wireless Hotspot
  • WiFi , RFID
  • Wireless Video System

Features:

  • Superior performance
  • The weight is light
  • Good appearance designs
  • DC short lightning protection
  • Installed for vertical or horizontal polarization
  • Behind and support is an aluminum
  • Support is up and down or so to adjust
  • Outdoor antenna for public hot-spots
  • Includes tilt and swivel mast mount brackets
  • RoHs compliant
