Directional Yagi Antenna for 2.4 ~2.5 GHz

Model : AYG-2418

Electrical Specification:

Frequency 2.4 ~ 2.5 GHz
Part Number AYG-2418
Polarizatin Linear

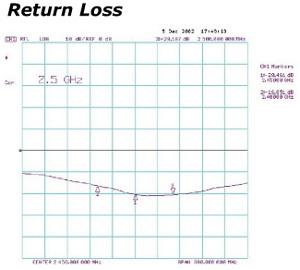

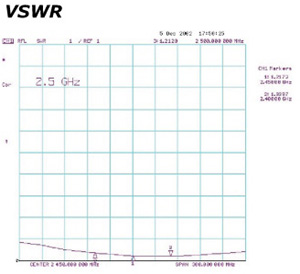

V.S.W.R. 1 : 1.5 Max
Impedance 50 OHMS ±5Ω
Gain 18 dBi
Power handling 15W Max
Front to back ratio 30dB
HPBW / horizontal 20°
HPBW / vertical 15°



MECHANICAL SPECIFICATION

Connector Tyep N Type Female

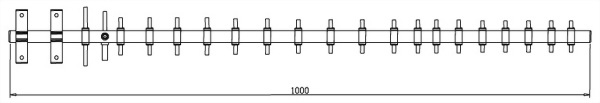

Length 1000x50x45mm
Weight 690g
Radome color Aluminum
Radome materal N/A
