• 2.4GHz Outdoor Wireless Radio Bridge Solution (Video Server Included)The Brand-new Wireless Solution for Surveillance

2.4GHz Outdoor Wireless Radio Bridge Solution (Video Server Included)The Brand-new Wireless Solution for Surveillance

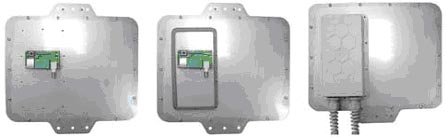

Model : Aline-24005g V

Wireless Radio Bridge Specification
Standards Compliance IEEE 802.11b
IEEE 802.11g
SDRAM 8 M Byte
Flash 2 M Byte
Radio Frequency Type Direct Sequence Spread Spectrum (DSSS)
Frequency Band America/FCC:2.412~2.462 GHz (11 channels)
Europe CE/ETSI:2.412~2.472 GHz (13 channels)
Japan :2.412~2.484 GHz (14 channels)
France: 2.457~2.472 GHz(4 channels)
Spain: 2.457~2.462 GHz (2 channels)
Transmission Power 802.11b:20 dBm
802.11g:17 dBm
Transmission Rate 108/54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback
Access Point Interfaces Auto MDI/MDI-X Ethernet 10/100Base-TX: RJ-45
Radio Wave: Antenna N-Male
Sensitivity -88dBm @ 11Mbps, PER < 8%; -74dBm @ 54Mbps, PER < 10%
Antenna Type External high gain antenna
Security Systems 64-bit/128-bit/152-bit WEP encryption; Wi-Fi Protected Access (WPA)
Wireless Setting Operation Mode  AP / Wireless Client (Infrastructure and Ad Hoc) /Repeater / WDS PtP and PtMP Mode
Software/Firmware Site Survey
DHCP Client
WPA Support (WPA personal and enterprise)
Web-based configuration via popular browser (MS IE, Netscape)
Windows "Locator" program to help find IP in DHCP client mode Firmware upgrade and configuration backup via Web
Reset to default by WebUI
Operating Environment Operating Temperature:-30 ~ +70°C
Power DC 12 Volt + 5%; 2A (Max.); AC adapter AC 100V ~ 240V;
DC 15 Volt + 5%(optional)
Regulatory Approval FCC Part 15 B (US); CE
Network Management
System OS Support
Windows 95/98/Me/NT4.0/2000/XP
Warranty One year limited


Video server
Functional Description

  • Video server Functional Description Features.
  • The intelligent network System on a Chip (SoC) solution delivering high performance and QoS (802.1pQ) for ensuring a stable and high quality video streaming (IP multicast, IGMP supported).
  • Digital TimeCode Embedded
  • Built-in LAN and WAN (PPPoE supported) Ports
  • DDNS supported
  • Simultaneously Analog and Digital outputs
  • Live Video Variation Setting - Brightness, Contrast, Hue and Saturation
  • MPEG-4 Living Streaming - Protocols supported by TCP, UDP, HTTP, BOOTP, DHCP, PPPoE
  • QoS Function Setting - Priority Service Scheduling
  • Authorization Setting - The system supervisor can set authorization to prevent unauthorized user.
  • Motion Detection - Customization motion detection windows. The maximum is up to 3 windows.
  • External Device Controller - Control through RS232, and RS-485
  • Hardware and Software Watch Dog.
  • System Configuration Setting - Configure through LAN
Image System
Compression MPEG-4 ASP compliant hardware compression
Resolution QCIF (160 x 112 in NTSC, 176 x 144 in PAL)
CIF (352 x 240 in NTSC, 352 x 288 in PAL)
Full D1 (720 x 480 in NTSC, 720 x 576 in PAL)
Image Frame Rate 30 fps at full D1 resolution (NTSC)
25 fps at full D1 resolution (PAL)
Protocol Supported TCP, UDP, HTTP, PPPoE, DDNS, DHCP, IGMP
QoS Layer 2, 3
I/O Interface
WAN Port RJ-45 x1 (10/100base-T)
LAN Port RJ-45 x1 (10/100base-T)
Serial Port RJ-45 x1 (RS-485)
Analog Video Input Composite x1, BNC connector (NTSC/PAL)
Digital Input Terminal blocks x2:
  • Logic Level 0: 0 ~ 0.8 V
  • Logic Level 1: 2.31 ~ 5.3 V
  • Digital Output Terminal blocks x2:
  • Logic Level 0: 0 ~ 0.5 V
  • Logic Level 1: 2.8 ~ 3.3 V
  • Mechanical & Environment
    Power Requirement 12 V / 0.625 A / 7.5 W
    Operation Temp 5 °C ~ 50 °C (40 °F ~ 122 °F)
    Humidity RH10 % ~ 90 %
    Watch Dog Timer 5 sec
    Security Password/username protection for restricted camera access
    General Functions DI/O event triggered via Ethernet
    Built-in Web Server and network interface
    Client Software OS Supported Win 2000, Win XP, Win 2003
    Certification CE, FCC
    Power Consumption (Wireless Radio Bridge and Video Server Integrated)
    Transmit 0.31A DC48V
    Stand-by 0.26A DC48V
    Receive 0.26A DC48V
