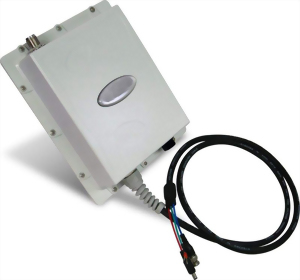

Wireless Surveillance Solution

Model : APE-2401g-V1H-N

Wireless Radio Bridge Specification
Standards Compliance IEEE 802.11b/g / IEEE 802.3 / IEEE 802.3u
SDRAM 8 Mbyte
Flash 2M Byte
Radio Frequency Type DSSS / OFDM
Modulation IEEE802.11b: CCK, DQPSK, DBPSK
IEEE802.11b/g: OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency Band America/FCC: 2.412~2.462 GHz (11 channels)
Europe CE/ETSI: 2.412~2.472 GHz (13 channels)
Transmission Power IEEE 802.11b/g: 20dBm
Transmission Rate IEEE 802.11b: 1/ 2/ 5.5/ 11 Mbps
IEEE 802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
Super G: up to 108Mbps
Access Point Interfaces Auto sensing MDI/ MDI-X Etherent 10/100 Base-TX; RJ-45
Sensitivity -86dBm @ 11Mbps, PER< 8%; -64dBm @ 54Mbps, PER< 10%
Antenna Type N-type female / External high gain antenna (optional)
Security Systems 64-bit/128-bit/152-bit WEP encryption
Wireless Setting Operation Mode- Bridge(WDS)PtP and PtMP Mode
Software/Firmware Web-based configuration via popular browser (MS IE, Netscape)
Windows "Locator" program to help find IP in DHCP client mode
Firmware upgrade and configuration backup via Web
Reset to default by WebUI
Support SNMP v1/v2c
Operating Environment Operating Temperature: -30 ~ +70°C
Power DC 24 Volt ± 5%; 1A (Max.); AC adapter AC 100V ~ 240V
Regulatory Approval N/A
Network Management
System OS Support
Windows 2000/ XP/ Vista Home Basic
Warranty One year limited
Video Server Specification
System (Compression-Video)
CPU ARM9 based 32 bit RISC
SDRAM 64 MB
Flash 8MB
Embedded OS Linux 2.6
Format M-JPEG, MPEG-4, H.264 Stream Simultaneously
Frame Rate Up to 30fps (NTSC) / 25fps (PAL) @ D1 resolution
Bit Rate 32 kbps ~ 4 Mbps
Video Resolution NTSC: D1 (720*480), CIF(352*240), QCIF(176*120)
PAL: D1 (720*576), CIF(352*288), QCIF(176*144)
Video Input 1 CH, NTSC / PAL, BNC connector, 1.0Vp-p with 75 �[ loading
IP Network
Ethernet RJ45 - 10/100 Base-T
Protocol TCP/IP, DHCP, PPPoE, HTTP, DDNS, NTP, FTP, SMTP, UDP
Pan / Tilt / Zoom
Protocols PelcoP, PelcoD, Dyna Color, Merit Lilin, Visca, Transparent
Baud rate 1200, 1800, 2400, 4800, 9600, 19200
Connector RS485 for PTZ control
Minimum System Requirements
CPU Pentium 4, 2.4GHz and Above
Hard Disk 40 GB or Above
Memory 512 MB or Above
Operating System Windows XP with SP2 or Above / Windows 2000 with SP4 or
Above / Vista 32
Video Resolution SVGA or XGA with 1024x768 Resolution
Software DirectX 9.0C or Above
Management and Support
Configuration IP Surveillance Utility
Integration IP Surveillance support (Windows XP)
Web Browser Microsoft Internet Explorer 6.0 or above
Security Password protection



Live Streaming (Up to 16 Multi-Segment Display)



Application Note







Wireless Features

  • Long Range 500 meter ~ 3 Km
  • Transmitting Real-Time and high quality video
  • Encrypted wireless video streaming
  • Easy operating by car battery input Power
  • Integrated 12V DC power for camera
  • Multi remote camera monitoring
  • Compatible for all types of CCTV Camera
  • DIY design for quick installation without cabling
  • Pre-configured for Plug & Play
  • Heavy-duty IP68 enclosure for all weather protection
  • PC compatible for monitoring and recording
  • License Free band

Video server Functional Description Features

  • 30FPS@D1 Resolution
  • H.264 / MPEG4 / M-JPEG Codec
  • Web Server Built-in
  • 16 CH CMS(Central Management Software) included
  • Pre / Post Buffer for Image / Video Capturing
  • DDNS Support
  • Real Time Clock with Battery
  • Configurable bit-rate from 32 kbps to 4 Mbps
  • Available from 1 CH to 16 CH NVR system
  • Cooperated with all CCD / CMOS CCTV Camera
