2 Megapixel / H.264

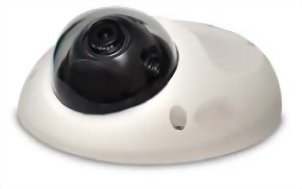

Model : AAL-9071-C

Camera

Sensor

2 Mega Pixel 1/4” CMOS sensor

Scan Method

Progressive

Lens

Fixed Lens 3.6mm

Number of Effective Pixel (H*V)

1600x1200

Minimum Illumination

0.1Lux (F1.6, AGC max.)

Horizontal Resolution

950TVL

Dynamic Range

71db

SNR(max)

42db

DNR

Auto

White Balance

Auto

Gain Control

High/Middle/Low, 3 steps selection

Flicker Control

Off/50Hz/60Hz, 3 steps selection

Backlight Compensation

On/Off

Electronic Shutter

Auto/Slow Shutter

Panning Coverage

-15°~ 15°

Tilting Coverages

0°~ 90°

IR Illuminators

Day and Night

Digital

Video

Video Compression

H.264 (MPEG-4Part 10/AVC)/MJPEG,Dual codec

Video framerate

1600x1200@15fps/1280x720@30fps

Resolution

H.264 : 2M(1600x1200@15fps)

720P(1280x720@30fps)

MJPEG : 2M(1600x1200@5fps)

720P(1280x720@15fps)

Bitrate control

CBR and VBR, 128kbps~4Mbps

Multi-streams

Dual streaming,Multiple profiles

1280x720 H.264@30fps/640x352 H.264(Sub)@30fps/

1280x720 MJPEG@15fps/

1600x1200 H.264@15fps/640x480 H.264(Sub)@15fps/

1600x1200 MJPEG@5fps

Digital Zoom (PC side)

Digital

Image Rotation

Mirror, Flip, Rotate 180°

Intelligent Video

De-noise

Yes

Motion detection

Yes

Blind detection

Yes

Privacy Mask

Yes

Audio

1Way Audio

Bulit-in Microphone

Compression

AMR, G.711 @ 64kbps, G.726 @ 32kbps/

Configure bit rate

Network

Streaming Protocols

RTSP/RTP/UDP,RTSP/RTP/TCP,RTSP/RTP/HTTP

tunneling, LAN Multicast, Multipart-JPEG

Supported Protocols

IPv4, IPv6, HTTP, UDP, TCP, ICMP, IGMP, ARP,

DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE,

DNS, DDNS, RTSP, RTP, RTCP, ONVIF

Mobile Surveillance

iPhone, iPad, Android, BlackBerry

Storage

External

1x Micro SD Card (Maximum 32GB)

Processors and Memory

CPU

ARM9 SOC

Flash and Memory

16MB NOR ,128MB DDRII

I/O and Connectors

LAN

1x RJ45 Ethernet connector

Audio

1x Internal Microphone-in

Factory Default

1xReset Button

Software Compatibility

Browser

Internet Explorer 6.0 or above

Application Software

VMS Application Software

OS supported

Microsoft Windows 2000, XP , Vista, Windows 7

Open API



CGI commands to control camera

Media SDK to handle streaming

Factory Default



Button

Power

Power

DC 12V

DC12V/ POE

Power Consumption

TBD

Demension



107.1mm(Φ)x49.7mm(H)

Weight



TBD

Operating Environment

Operating temperature

-10°C~ 50°C

Storage temperature

-20°C~ +60°C

Humidity

10% ~ 95% non-condensing

Certification



CE, FCC Class B, RoHS

Warranty



24 months

Dimension Diagram




•2 Megapixel 1/4” CMOS Sensor in High Resolution

•H.264/MJPEG Dual Codec & Streaming simultaneously

•Fixed Lens 3.6mm

•Up to UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)

•3D Noise Reduction

•Microphone Embedded

•Intelligent Video Analytics

•Easy to install

•Micro SD Card Support (SDHC up to 32GB)

•DC12V & PoE Power Over Ethernet IEEE802.3af (Option)
